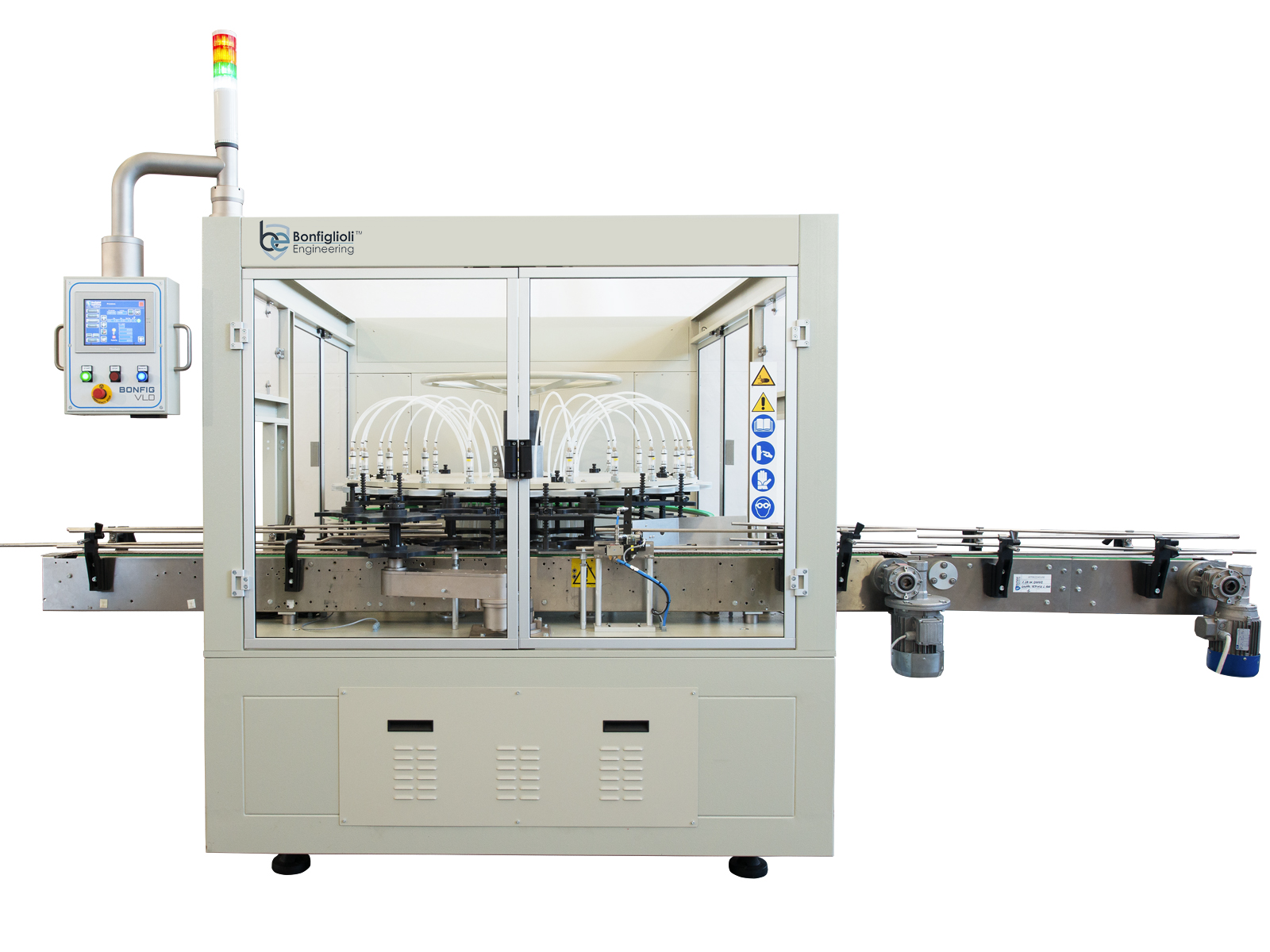

      VLD Leak Tester

      Metal Cans & Aerosols

      100% In-line Machine for Non-Invasive, Non-Destructive Integrity Inspection at high production speed for empty containers (such as Pails, Composite Cans, 3 Pieces Cans, 2 Pieces Cans, Metal Canning).

      icon-01 PLAY VIDEO

      Composite Can

      2 Pieces Cans

      Tech specifications
      icon-23

      Highlights

      • Zero alteration of container features
      • High machine adaptability & stability
      • Easy management
      • Low energy consumption
      • Low & Ease of maintenance: free access to all moving parts
      • Industry 4.0 Environment compliant
      Contact Us
      VLD | Leak Tester Contact Us
      icon-19

      Technical Features

      icon-12
      • Container Application: Pails, Composite Cans, 2 & 3 Pieces Cans, Metal Canning
      • Container Dimensions: From Ø52 x 34 mm (h) to 158 x 300 mm (h)
      • Speed: Up to 1200 cpm
      • Technology: Vacuum Decay Method
      • Inspection Features: Non-Invasive, Non-Destructive CCIT based on Vacuum Decay Method
      • Inspection Capabilities: Microleaks detection
      icon-20

      Additional Benefits

      icon-12
      • Low investment cost
      • Reliability guaranteed above 99%
      • Enhanced easy-to-use HMI integrated functions
      • Quick format change
      • HMI real time display of statistics and raw data
      • Noise levels well within allowed limits
      icon-21

      Technology

      icon-12

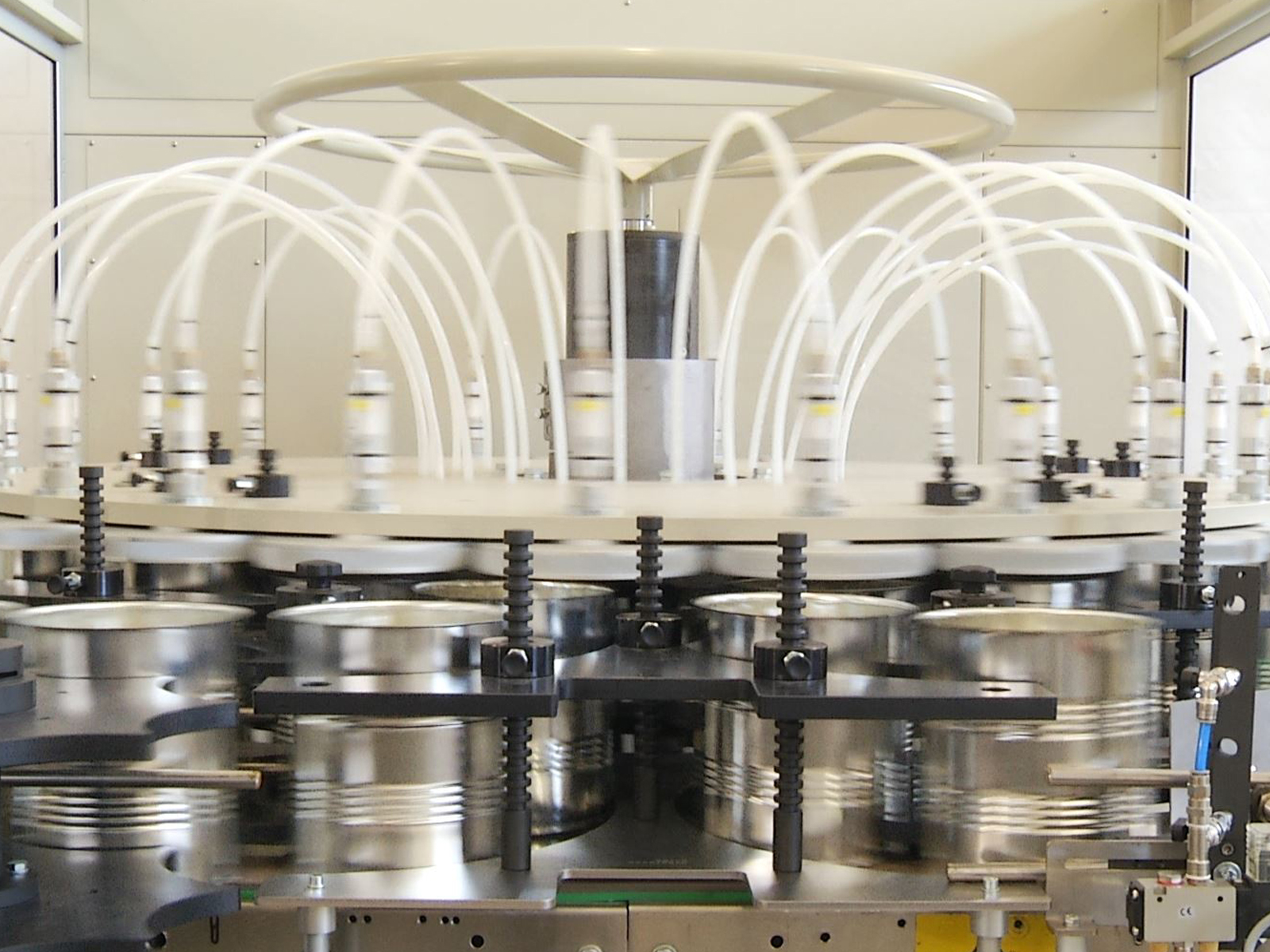

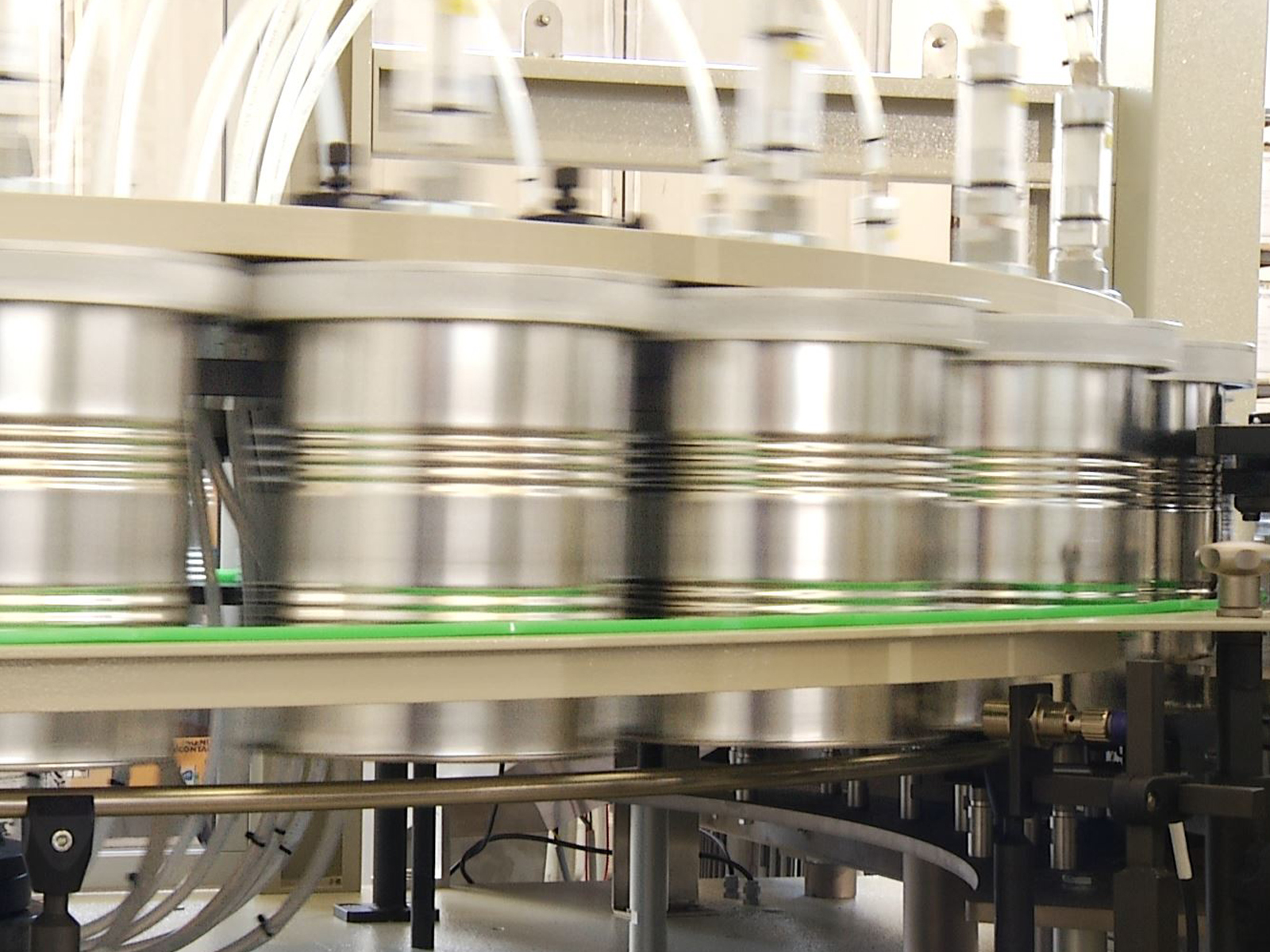

      • Container Closure Integrity Testing is a non-destructive measurement technology based on Vacuum Decay Method performed while the package itself is held within an hermetically sealed test chamber.
      • Vacuum Decay test measures the loss of vacuum inside the testing chamber as a result of headspace gas leakage from the package.
      • The monitoring of the vacuum level allows to identify microleaks and rejecting the faulty container.
      • The leak testing machine measurement system is designed to identify the presence of leaks on containers due to:
        • (micro) holes.
        • Inappropriate sealing.
        • Cracks.
      icon-22

      Quality Assurance

      icon-12
      • Equipment test method refers to:
        • Approved industry standard “ASTM F2338-09”: “Standard Test Method for Non-Destructive Detection of Leaks in Packages”

      Download datasheet
