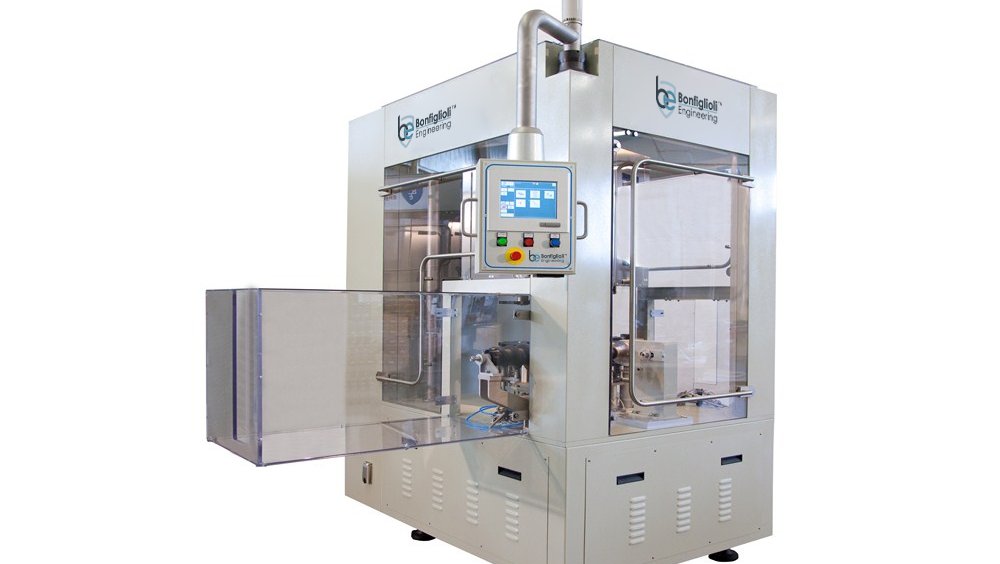

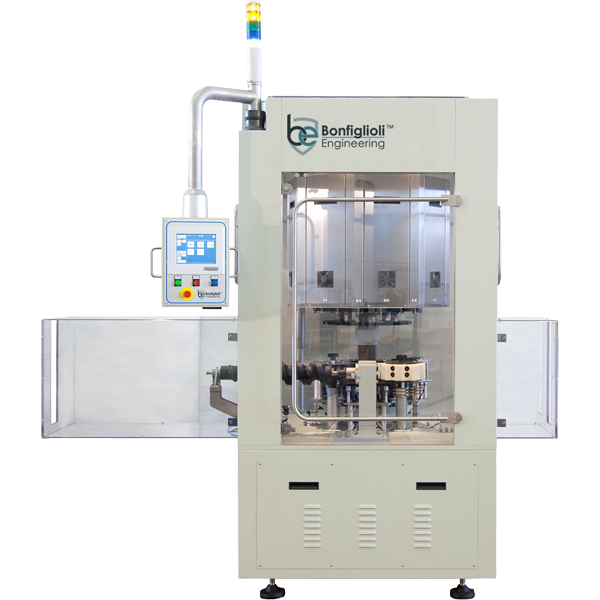

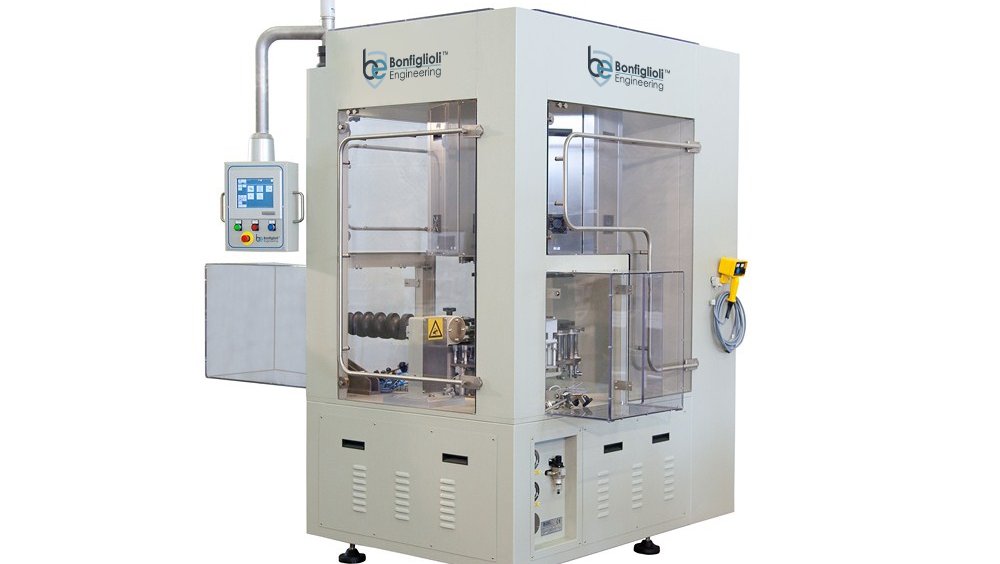

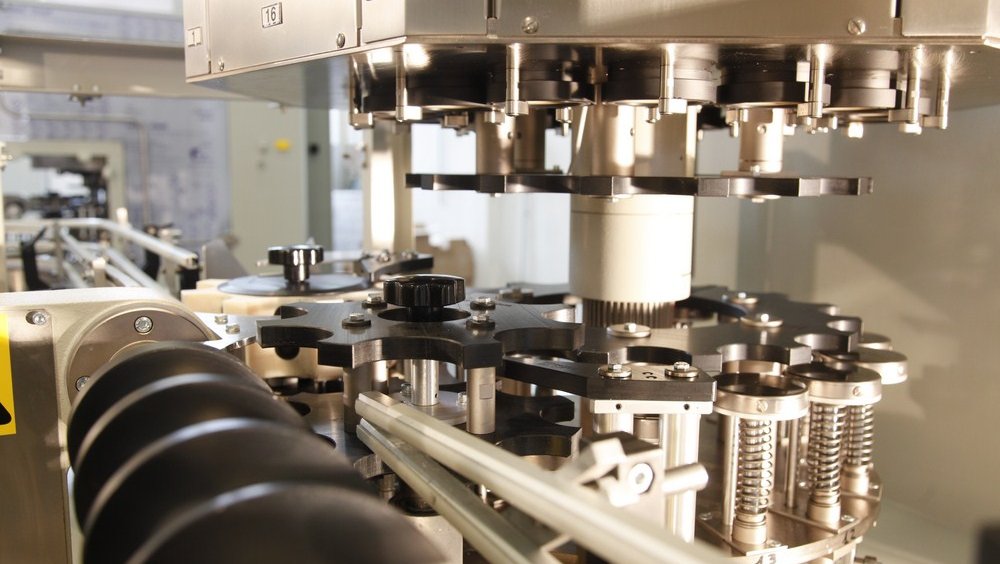

      RLD 400A Leak Tester

      Metal Cans & Aerosols

      100% In-line Machine for Non-Invasive, Non-Destructive Integrity Inspection at high production speed for filled Aerosol Can.

      icon-01 PLAY VIDEO

      Filled Aerosol

      Monobloc

      2 Pieces Cans

      Tech specifications
      icon-23

      Highlights

      • Alternative test to water bath
      • Zero downtime
      • Valve tight control
      • Zero alteration of container features
      • High machine adaptability & stability
      • Easy management
      • Low energy consumption
      • Low maintenance due to automatic calibration
      • Low & Ease of maintenance: free access to all moving parts
      • Full integration in Industry 4.0 Environment
      Contact Us
      RLD 400A | Leak Tester Contact Us
      icon-19

      Technical Features

      icon-12
      • Container application: Filled Aerosol Can
      • Container dimensions: From Ø35 x 70 mm (h) to Ø65 x 330 mm (h)
      • Speed: Up to 60 cpm
      • Technology: Vacuum
      • Inspection features: Non-Invasive, Non-Destructive CCIT based on Vacuum Decay Method
      • Inspection Capabilities: Microleaks detection
      icon-20

      Additional Benefits

      icon-12
      • Low investment cost
      • Reliability guaranteed above 99%
      • Enhanced easy-to-use HMI integrated functions
      • Quick format change
      • HMI real time display of statistics and raw data
      • Wide range of optional devices that allow the machine to be personalized based on the specific customer needs
      • Noise levels well within allowed limits
      icon-21

      Technology

      icon-12

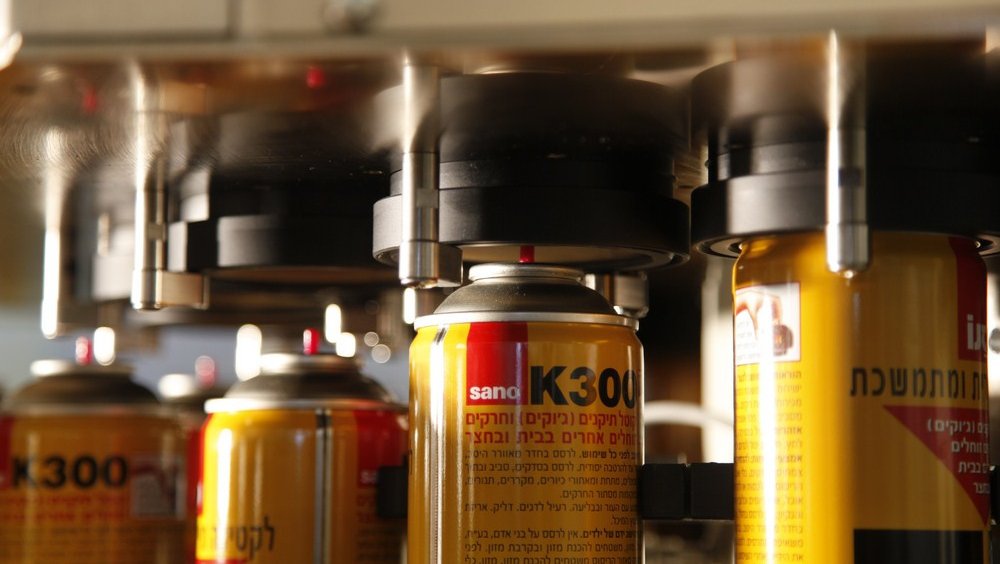

      • Container Closure Integrity Testing is a non-destructive measurement technology based on Vacuum Decay Method performed while the package itself is held within an hermetically sealed test chamber.
      • Vacuum Decay test measures the loss of vacuum inside the testing chamber as a result of headspace gas leakage from the package.

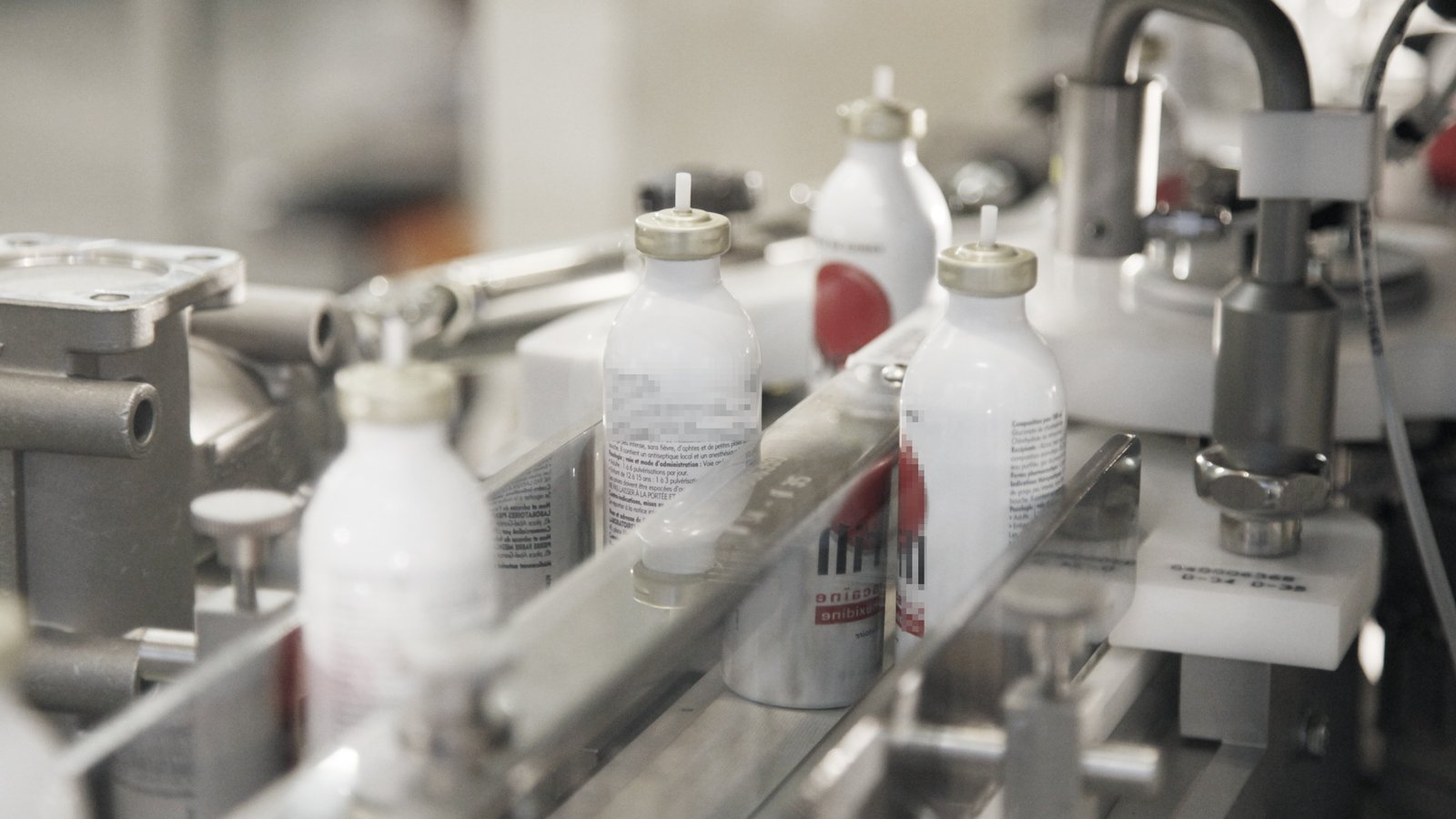

      • The monitoring of the vacuum level allows to identify microleaks and rejecting the faulty container.
      icon-22

      Quality

      icon-12
      • Equipment test method refers to:
      • - approved industry standard ”ASTM F2338-09”: “Standard Test Method for Non-Destructive Detection of Leaks in Packages”
      • - specifications on Chapter 3 of “FEA Guide on Hot Water Bath Testing and Its Alternatives”
      • Machine Measurement System follows the approved industry standard "UN/SCETDG/24/INF.49"

      Download datasheet
