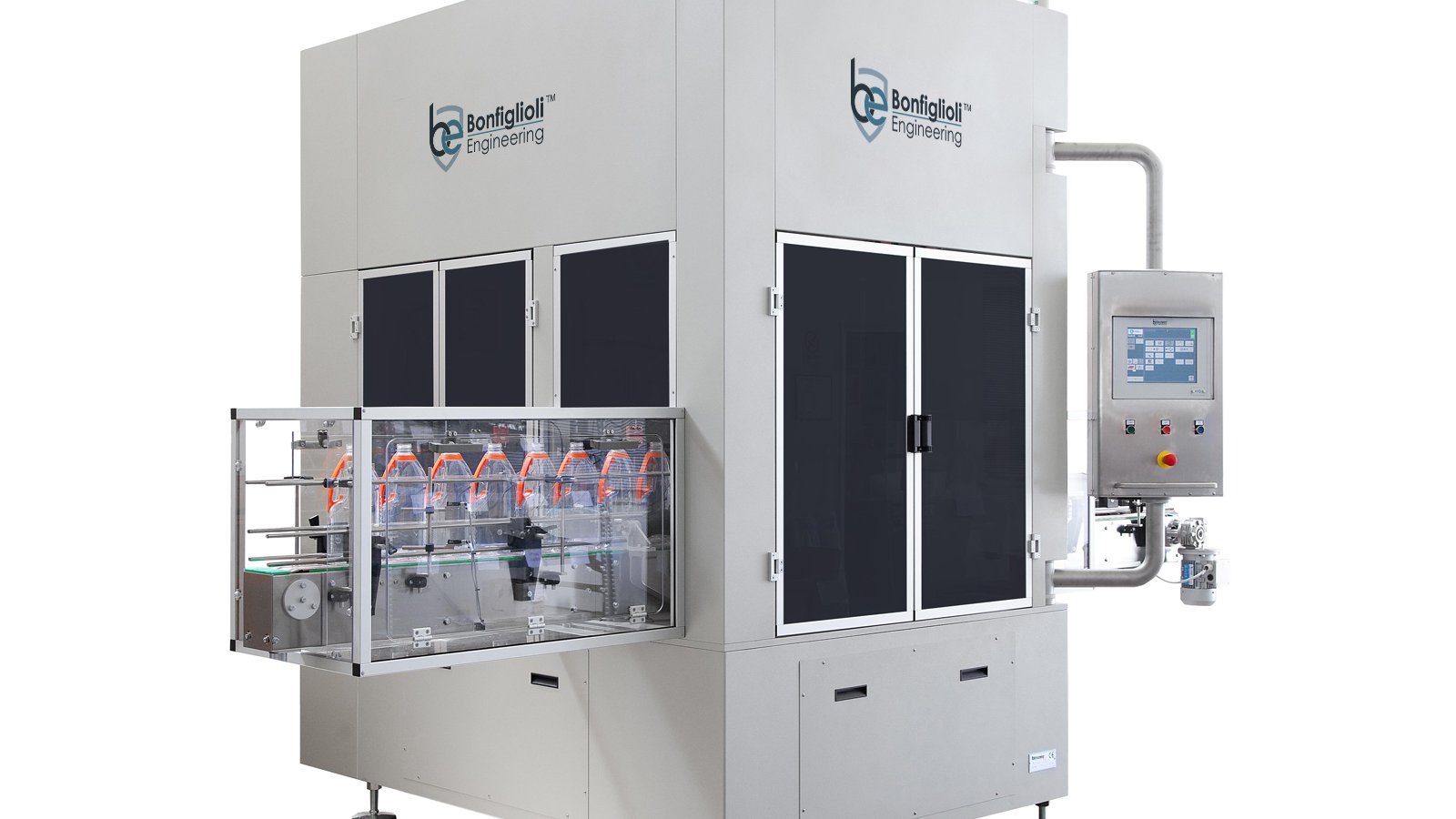

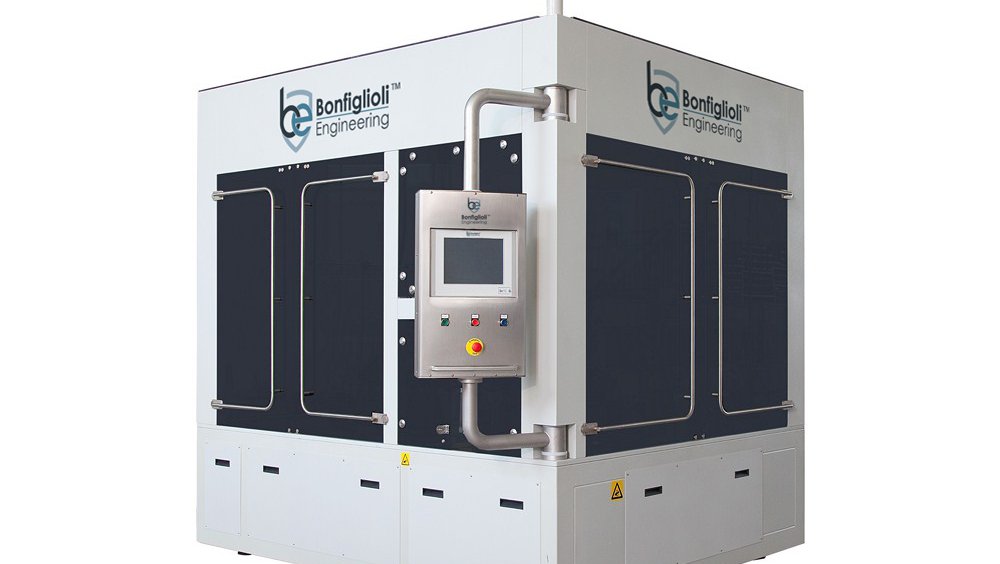

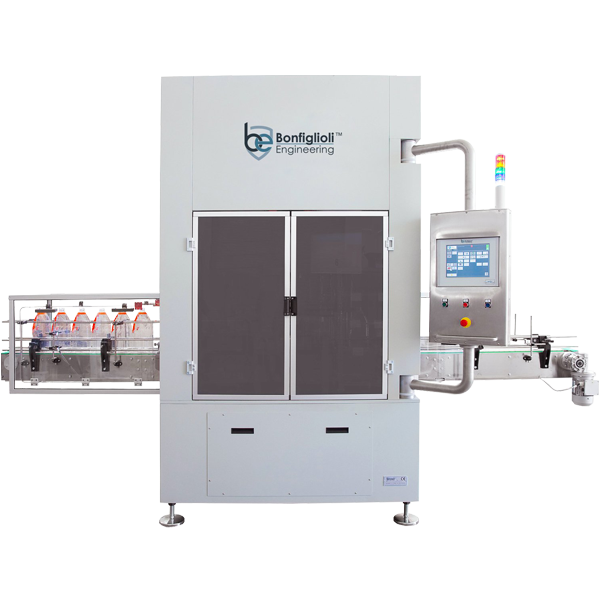

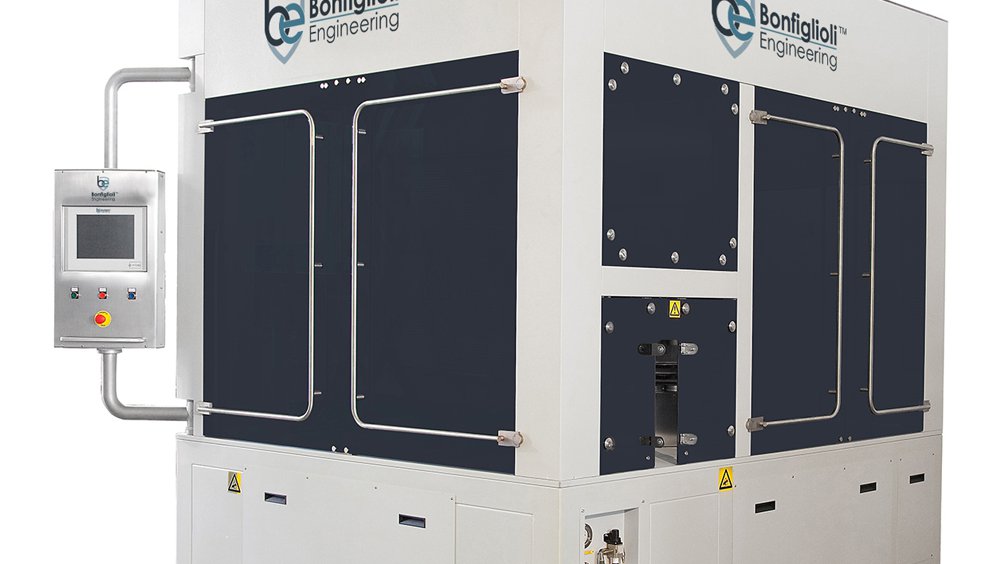

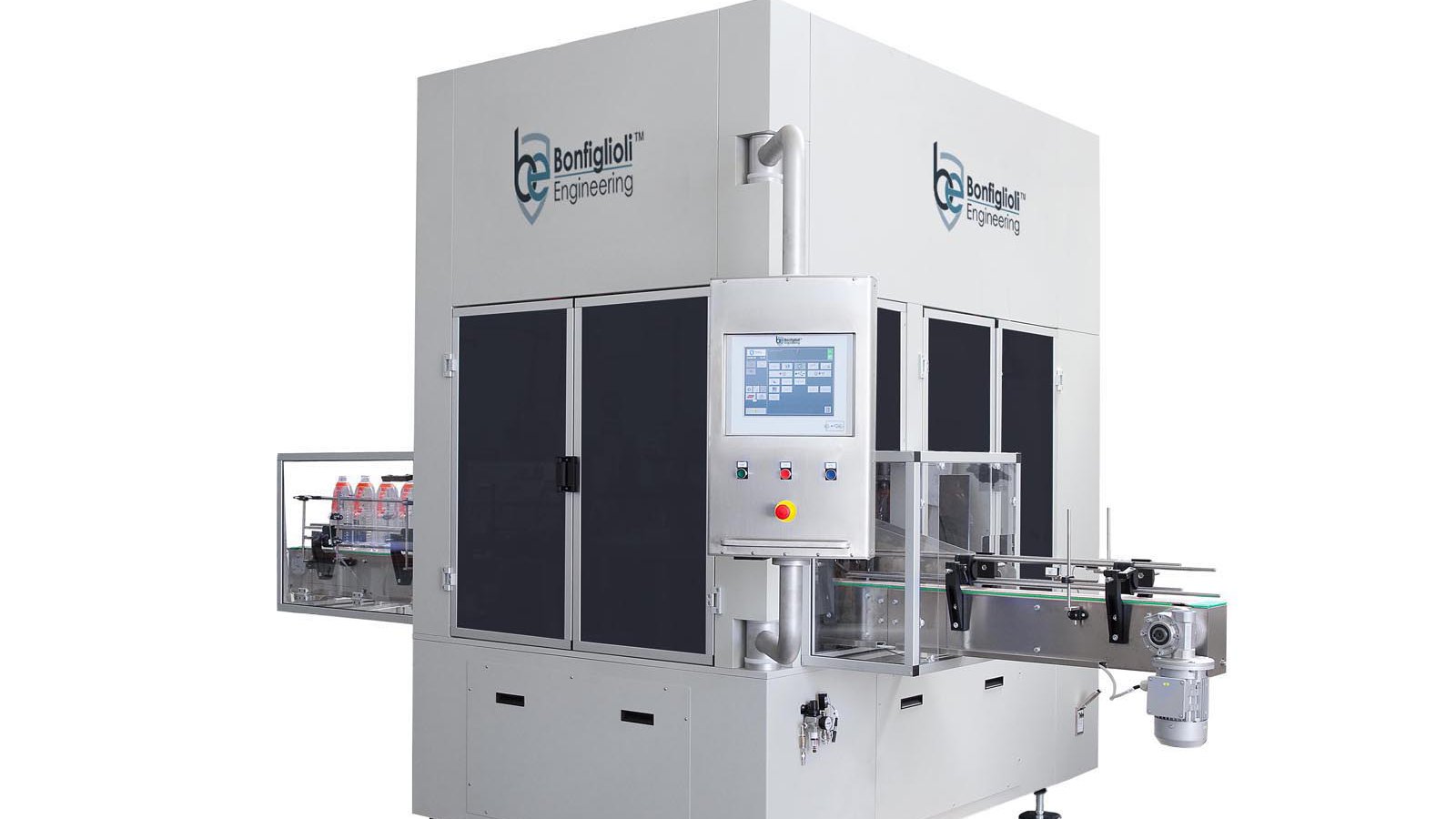

      RLD 230S Leak Tester

      Chemicals & Personal Care

      100% In-line Machine for Non-Invasive, Non-Destructive Integrity Inspection at high production speed for empty containers (such as Jerry Cans, Drums, Bottles, General Plastic Container).

      Bottles

      Jerry Cans

      Tech specifications
      icon-23

      Highlights

      • Zero alteration of container features
      • High machine adaptability & stability
      • Easy management
      • Low energy consumption
      • Low & Ease of maintenance: free access to all moving parts;
      • Full integration in Industry 4.0 Environment
      Contact Us
      Log in to watch the advanced video Log in
      RLD 230S | Leak Tester Contact Us
      icon-19

      Technical Features

      icon-12
      • Container application: Jerry Cans, Bottles, General Plastic Container
      • Container dimensions: From Ø52 X 29 mm (h) to Ø400 x 700 mm (h)
      • Speed: Up to 800 cpm
      • Technology: CCIT
      • Inspection features: Non-Invasive, Non-Destructive CCIT based on Vacuum & Pressure Decay Method
      • Inspection Capabilities: Microleaks detection
      icon-20

      Additional Benefits

      icon-12
      • Low investment cost
      • Realibility guaranteed above 99%

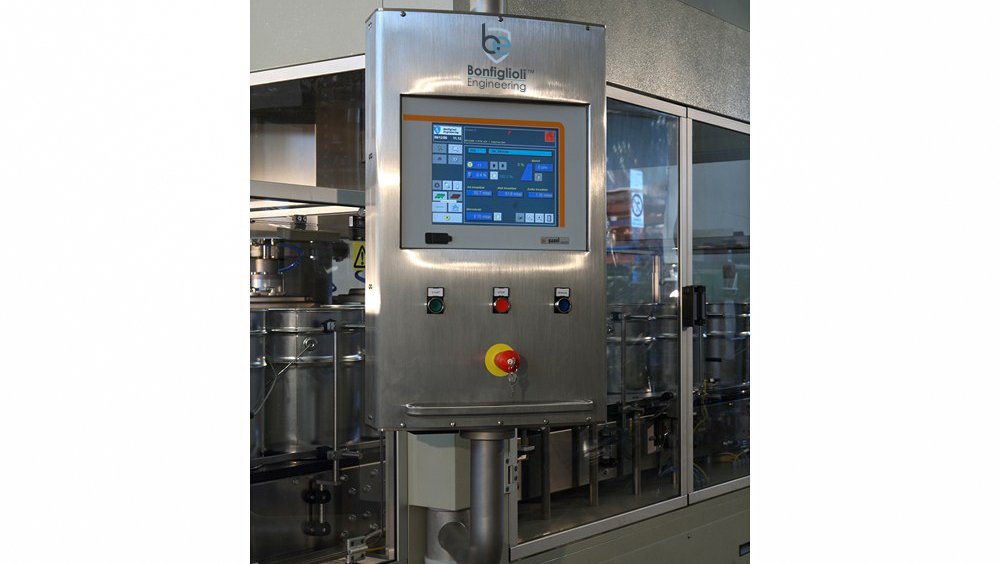

      • Enhanced easy-to-use HMI integrated functions
      • Quick format change
      • HMI real time display of statistics and raw data
      • Noise levels well within allowed limits
      icon-21

      Technology

      icon-12
      • Container Closure Integrity Testing is a non-destructive measurement technology based on the following testing methods:
        • Vacuum Decay Method
        • Pressure Decay Method

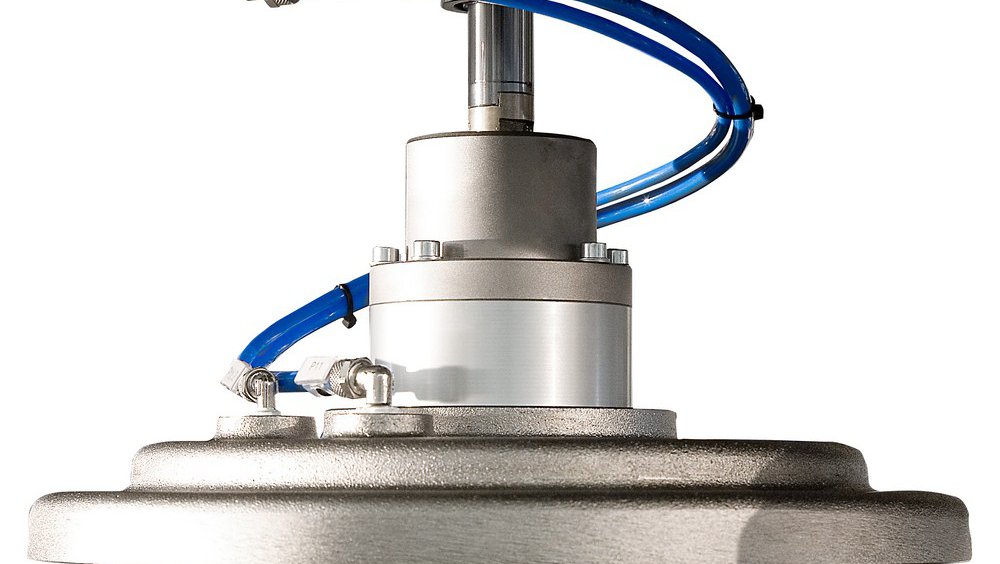

      • Measurement system comprises applying a pressure differential into an airtight testing group enclosing the container.
      • The test objective is to detect container leakages by measuring the reached pressure level as well as the pressure change over test time.
      icon-22

      Quality Assurance

      icon-12
      • Equipment test method refers to:
        • Approved industry standard “ASTM F2338-09”: “Standard Test Method for Non-Destructive Detection of Leaks in Packages”
        • No unhooking: star wheels safety clutch
        • Full batch control testing: fast, reliable and repeatable
