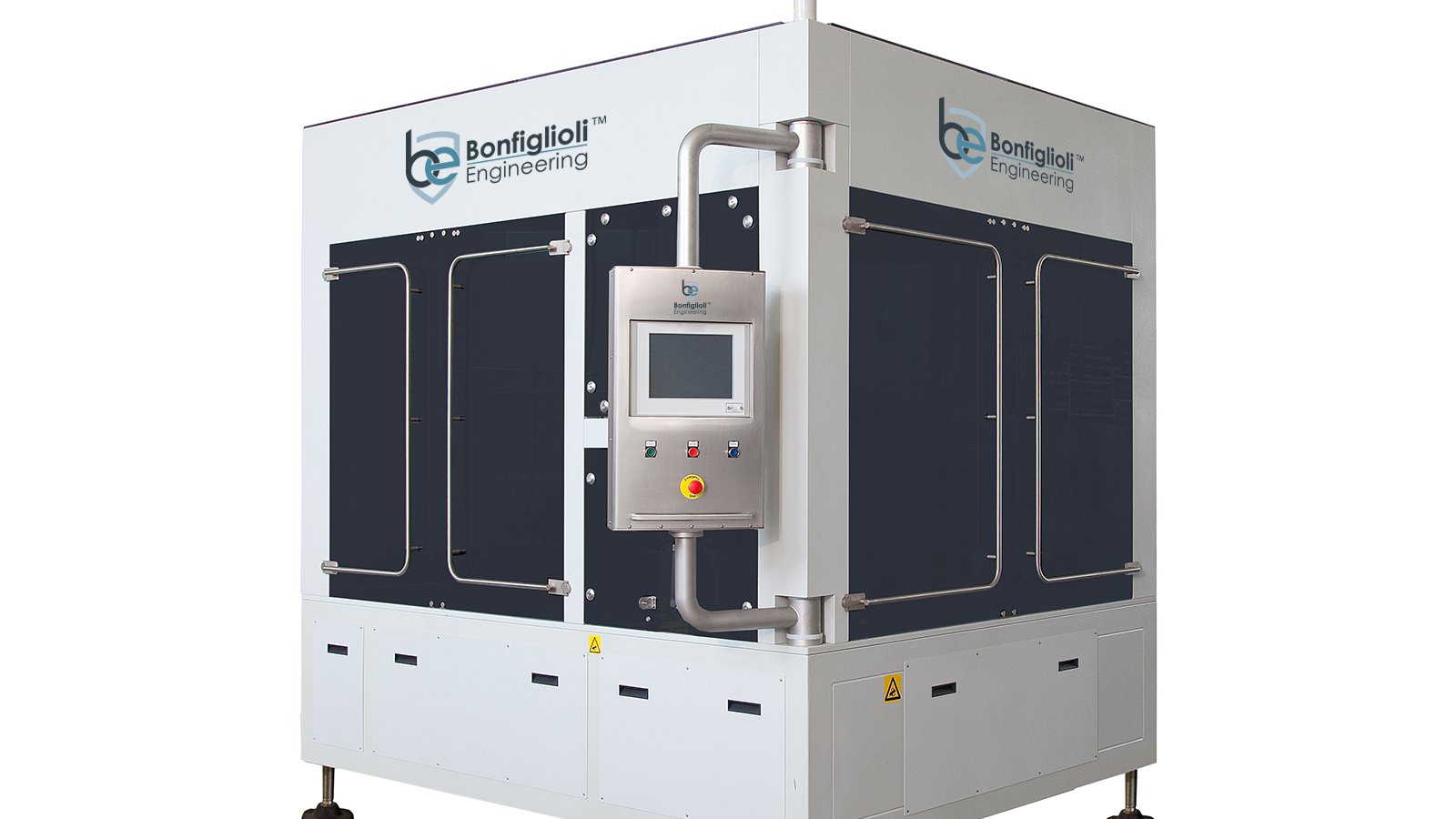

      RLD-230/R/RS Leak Tester

      Chemicals & Personal Care

      100% In-line Machine for Non-Invasive, Non-Destructive Integrity Inspection at high production speed for empty containers (such as cans, pails, drums, bottles).

      icon-01 PLAY VIDEO

      Bottles

      Jerry Cans

      Tech specifications
      icon-23

      Highlights

      • 3 configurations:

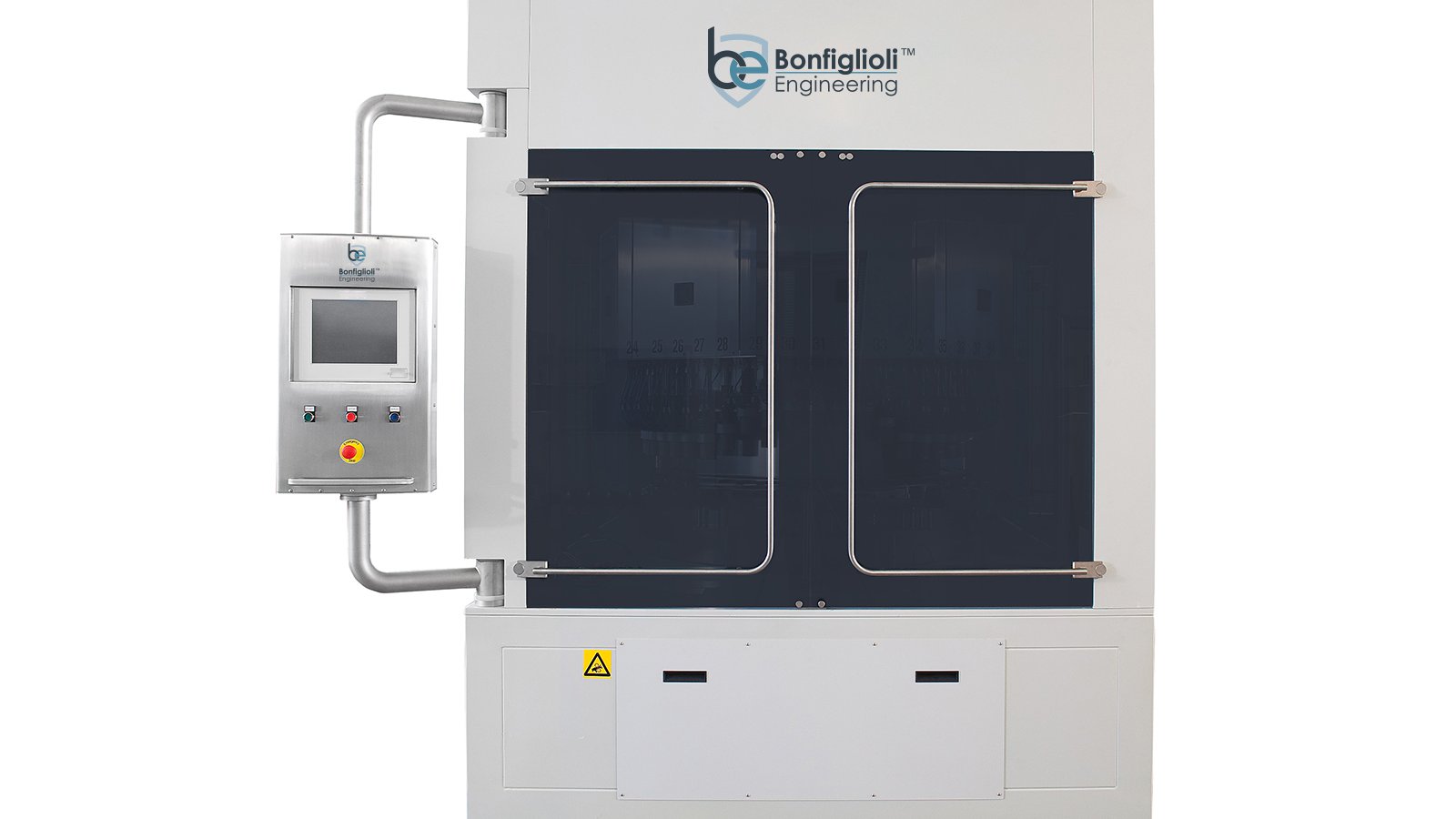

      • RLD-230 BASIC

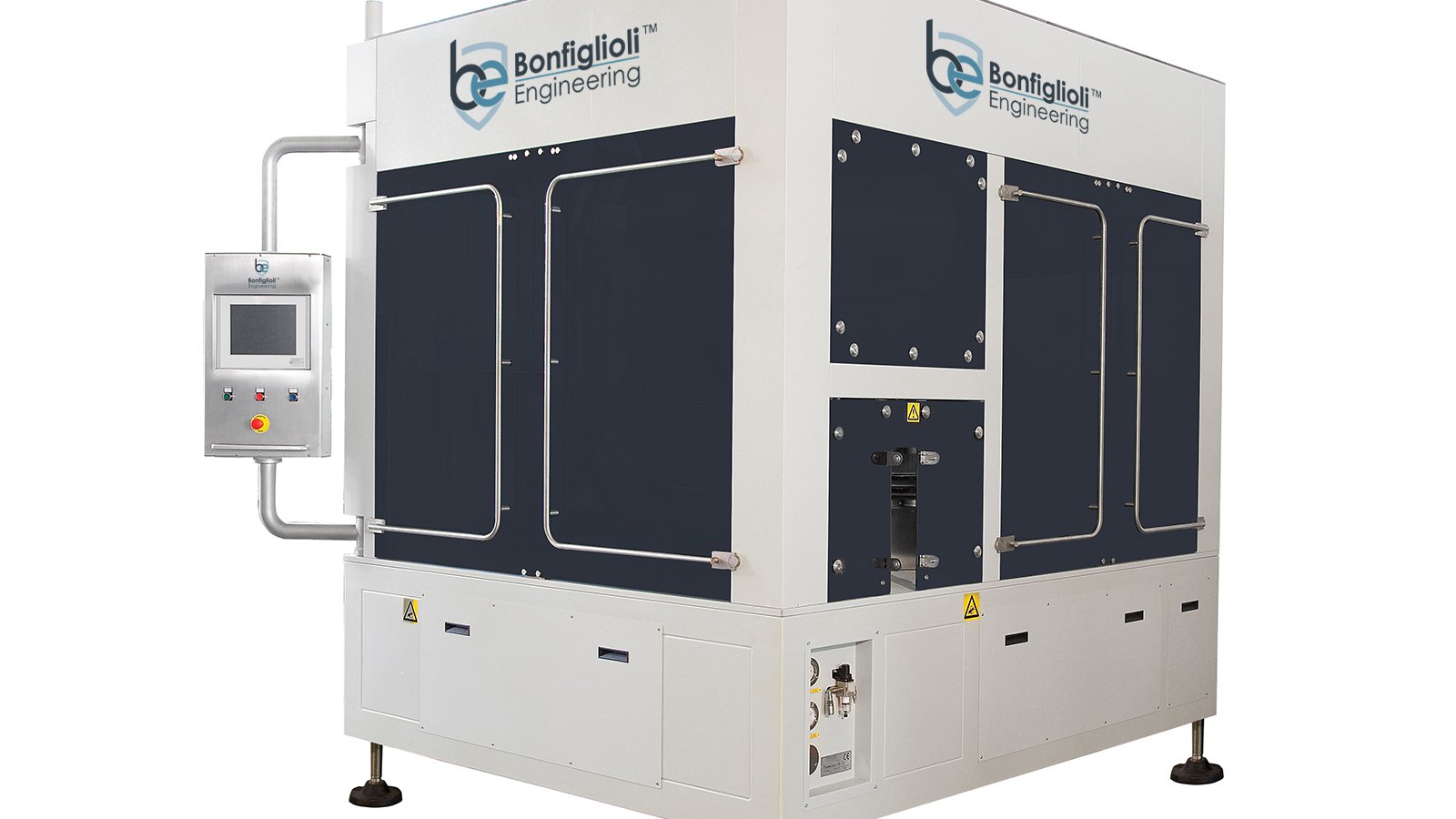

      • RLD-230R (with Volume Reducers)
      • RLD-230RS (with Volume Reducers & SCADA System)
      • Full integration in Industry 4.0 Environment
      Contact Us
      RLD-230/R/RS | Leak Tester Contact Us
      icon-19

      Technical Features

      icon-12
      • Container Application: Jerry Cans, Bottles
      • Container Dimensions: From diameter 25 to 350 mm
      • Speed: From 60 to 1200 cpm
      • Technology: Pressure Decay Method
      • Inspection Features: Non-Invasive, Non-Destructive CCIT based on Pressure Decay Method
      • Inspection Capabilities: Microleaks detection
      icon-20

      Additional Benefits

      icon-12
      • Statistical Process Control reduces deviations for a better yield control
      • Automatic speed adjustment according to signals coming from line downstream & upstream
      • Automatic confirmation of proper functioning and behavior of each testing chamber (Autotest)

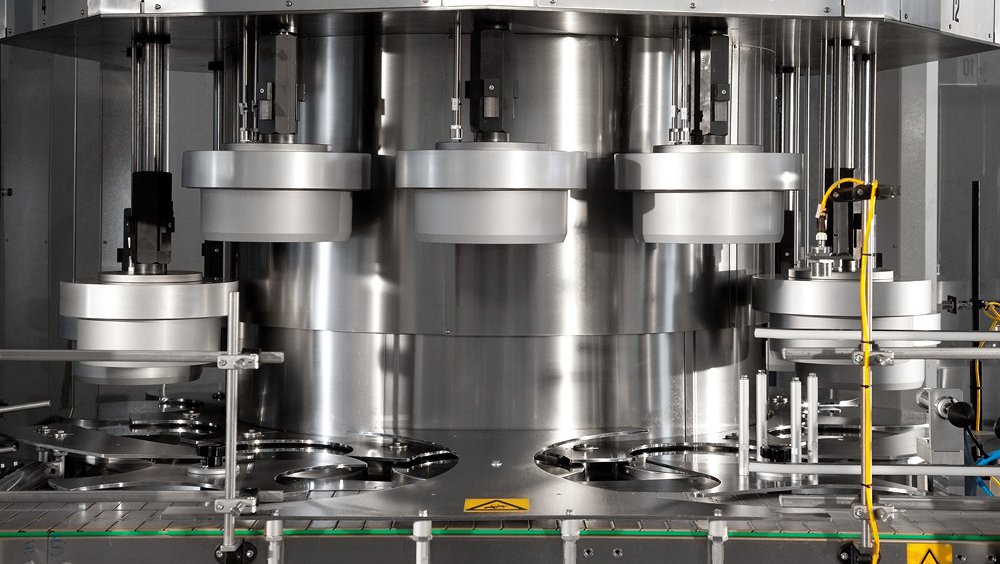

      • Increase of test sensitivity in large volume & opening containers with volume reducers
      • Quick format change: automatic height adjustment

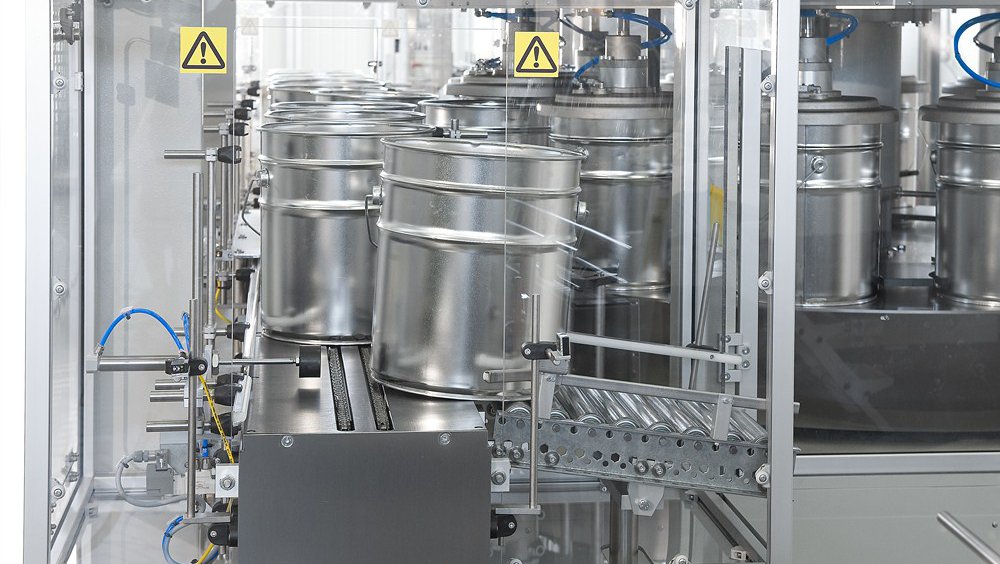

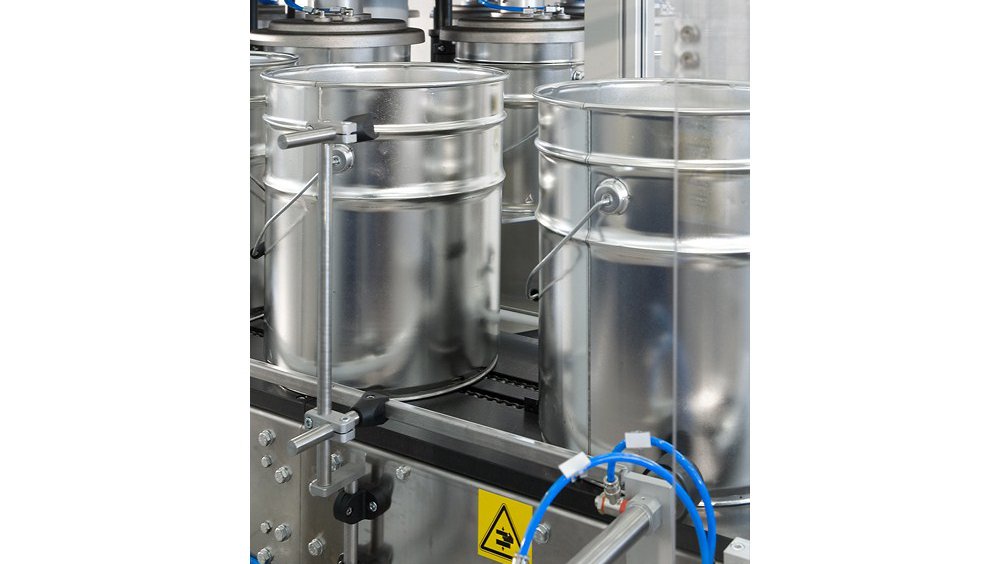

      • Magnetic star with relevant sensor checks the effective & precise can reject
      icon-21

      Technology

      icon-12
      • Container Closure Integrity Testing is a non-destructive measurement technology based on Pressure Decay Method.

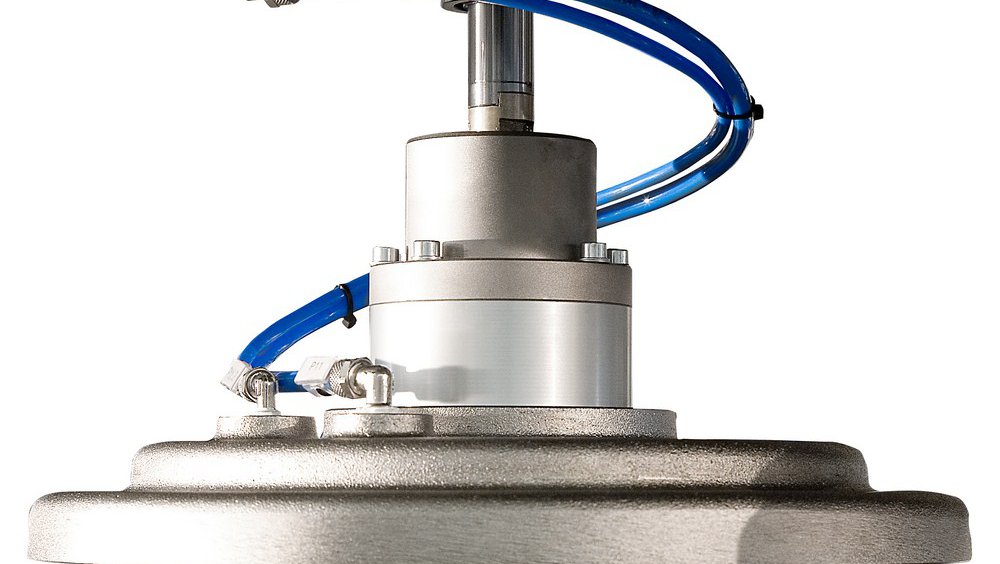

        Measurement system comprises applying a pressure differential into an airtight testing group enclosing the container.
        The test objective is to detect container leakages by measuring the reached pressure level as well as the pressure change over test time.

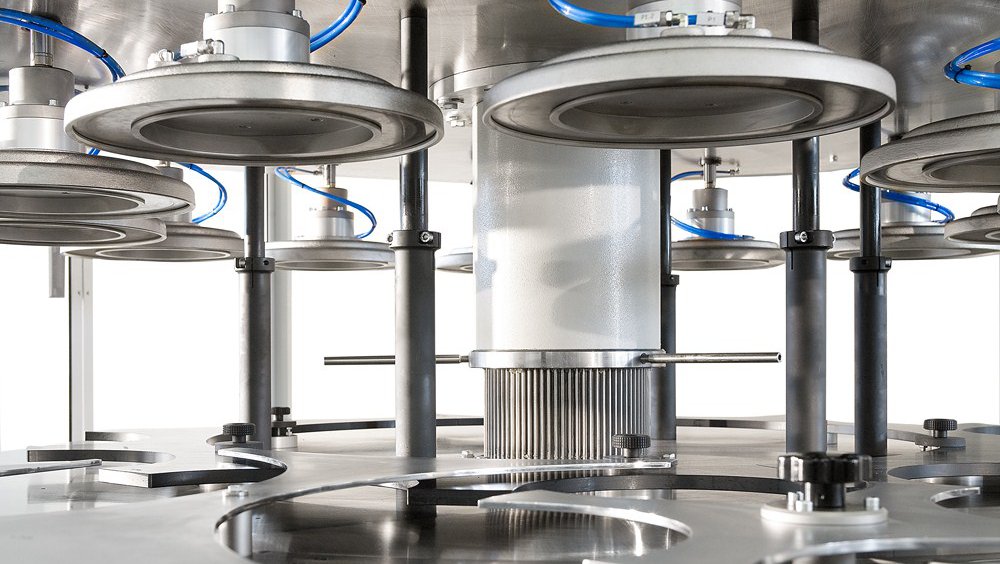

        In case of large buffer volume a Thoroidal Pneumatic Distributor provides the stabilization of each container pressurization phase.
      icon-22

      Quality Assurance

      icon-12
      • Equipment test method refers to:
        • Approved industry standard “ASTM F2338-09”: “Standard Test Method for Non-Destructive Detection of Leaks in Packages”
        • No unhooking: star wheels safety clutch
        • Full batch control testing: fast, reliable and repeatable
