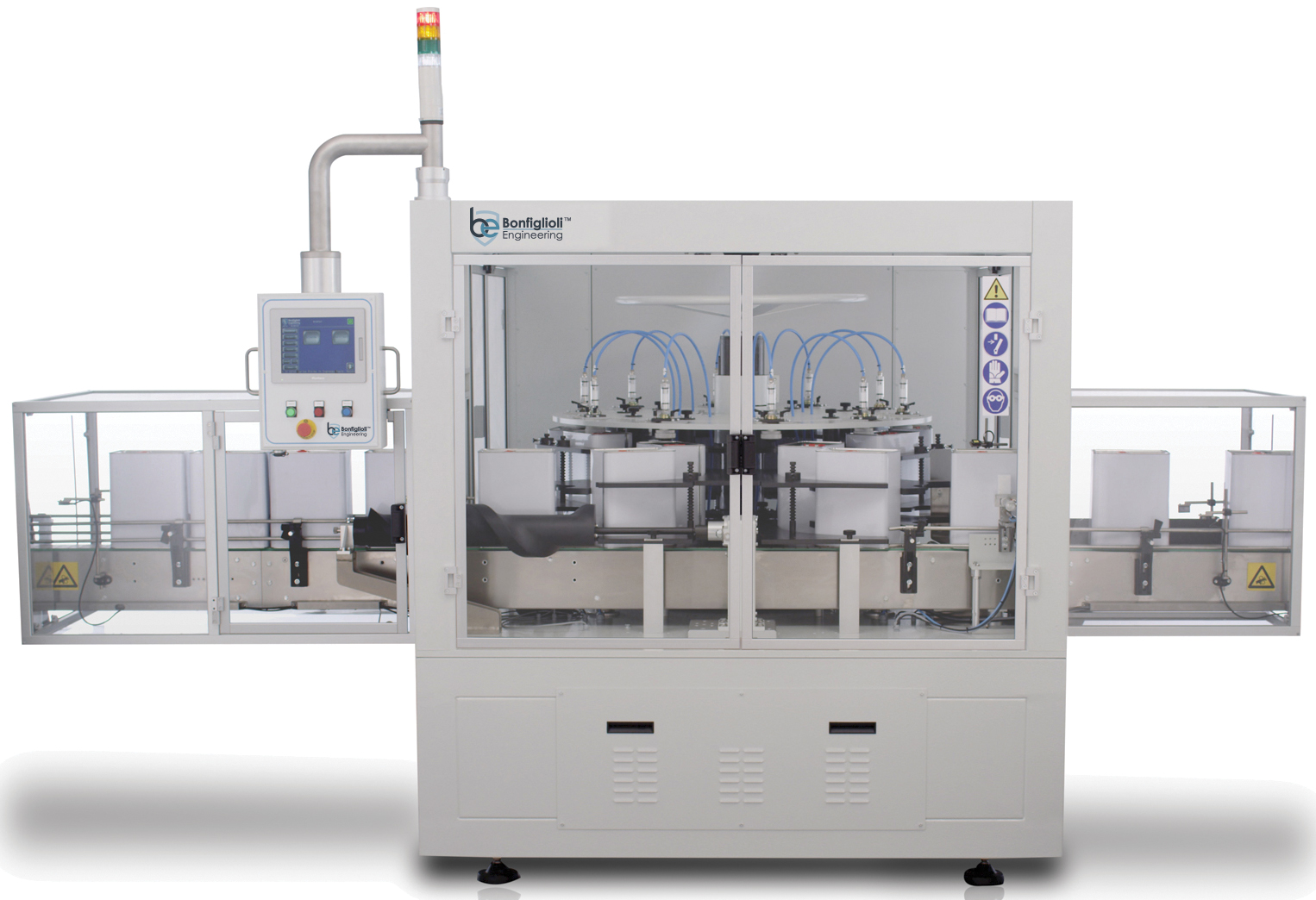

      RLD 220 Leak Tester

      Metal Cans & Aerosols

      100% In-line Machine for Non-Invasive, Non-Destructive Integrity Inspection at high production speed for empty containers (such as Pails, Composite Cans, 3 Pieces Cans, 2 Pieces Cans, Metal Canning; Plastic Bottle; General Container)

      icon-01 PLAY VIDEO

      Beverage

      Composite Can

      2 Pieces Cans

      Tech specifications
      icon-23

      Highlights

      • Zero alteration of container features
      • High machine adaptability & stability
      • Easy management
      • Low energy consumption
      • Low & Ease of maintenance: free access to all moving parts
      • Industry 4.0 Environment compliant
      Contact Us
      RLD 220 | Leak Tester Contact Us
      icon-19

      Technical Features

      icon-12
      • Container Application: Pails, Composite Cans, 3 Pieces Cans, 2 Pieces Cans, Metal Canning; Plastic Bottle, General Container
      • Container Dimensions: From Ø52x 34 mm (h) to Ø158 x 300 mm (h)
      • Speed: Up to 800 cpm
      • Technology: CCIT
      • Inspection Features: Non-Invasive, Non-Destructive CCIT based on Vacuum or Pressure Decay Method
      • Inspection Capabilities: Microleaks detection
      icon-20

      Additional Benefits

      icon-12
      • Low investment cost
      • Reliability guaranteed above 99%
      • Enhanced easy-to-use HMI integrated functions
      • Quick format change
      • HMI real time display of statistics and raw data
      • Electrical Cabinet Cooling System available
      • Noise levels well within allowed limits
      icon-21

      Technology

      icon-12
      • Container Closure Integrity Testing is a non-destructive measurement technology based on Vacuum Decay Method or Pressure Decay Method (in case of container with small neck) performed while the package itself is held within an hermetically sealed test chamber.
      • Vacuum Decay test measures the loss of vacuum inside the testing chamber as a result of headspace gas leakage from the package.
      • Pressure Decay measurement system comprises applying a pressure differential into an airtight testing group enclosing the container. The test objective is to detect container leakages by measuring the reached pressure level as well as the pressure change over test time.
      • The monitoring of the vacuum or pressure level allows to identify microleaks and rejecting the faulty container.
      • The leak testing machine measurement system is designed to identify the presence of leaks on containers due to:
        • (micro) holes.
        • Inappropriate sealing.
        • Cracks.
      icon-22

      Quality Assurance

      icon-12
      • Equipment test method refers to:
        • Approved industry standard “ASTM F2338-09”: “Standard Test Method for Non-Destructive Detection of Leaks in Packages”

      Download datasheet
