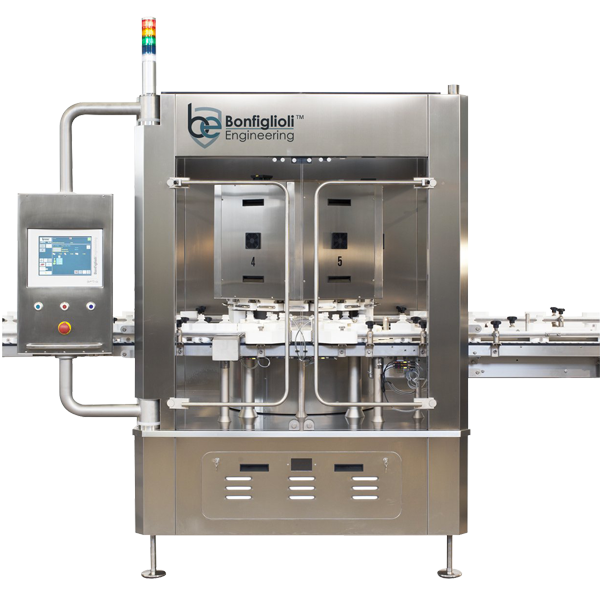

      PK-VG In-line not-standing F&B containers Tester

      Food & Beverages

      100% In-line Machine for Non-Invasive, Non-Destructive, Integrity Inspection at high production speed for not standing F&B containers (such as Bags, Pouches, Doypack, Flow packs) tested into dedicated Pucks.

      icon-01 PLAY VIDEO

      Pouches

      Flowpacks

      Tech specifications
      icon-23

      Highlights

      • Autotest in real time
      • Easy to validate
      • CFR 21 part 11 compliance and 4.0 full integration
      • Quick format changeover
      • High flexibility of containers to be tested
      Contact Us
      PK-VG | In-line not-standing F&B containers Tester Contact Us
      icon-19

      Technical Features

      icon-12

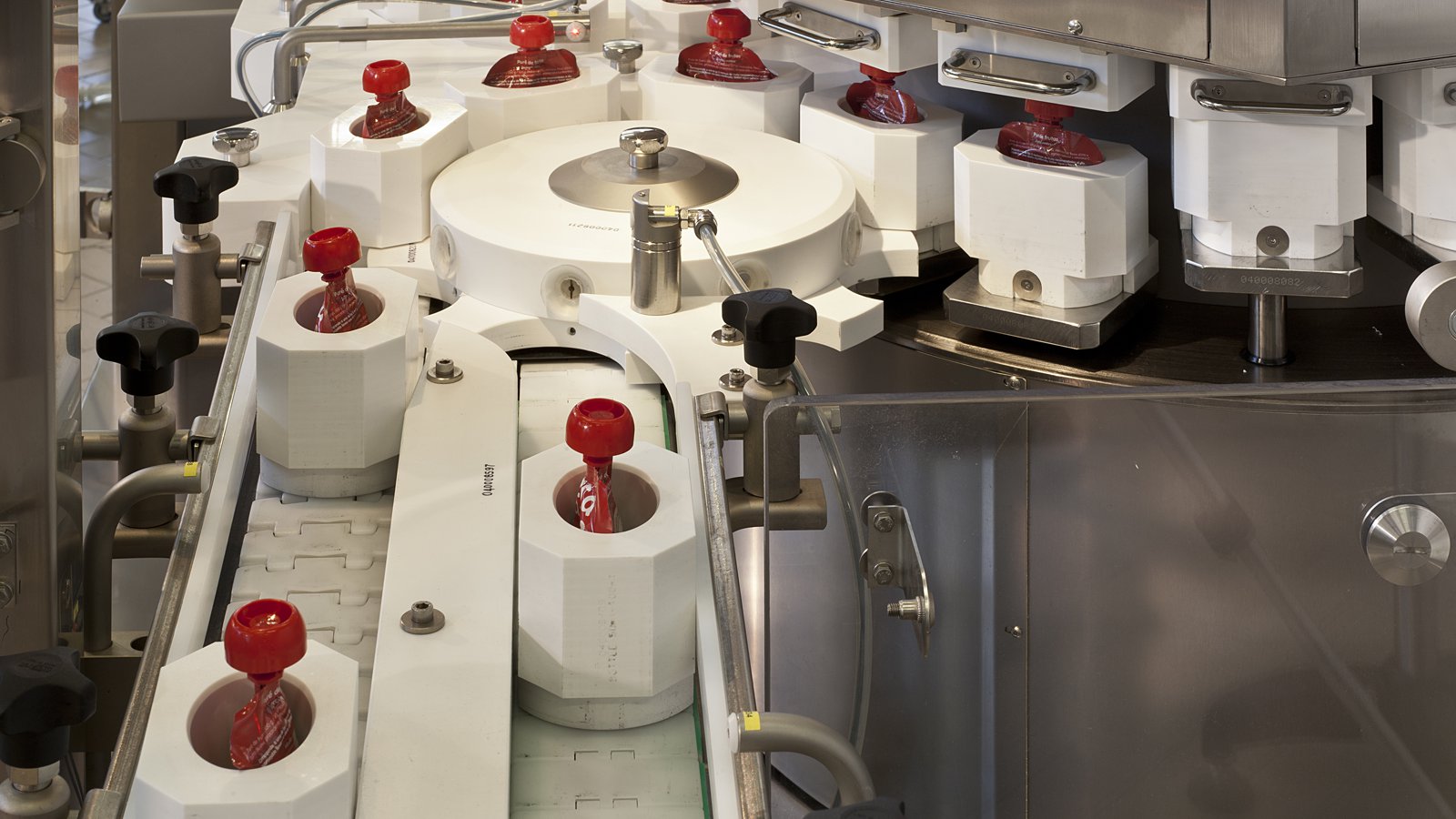

      • Container Application: F&B containers (such as Bags, Pouches, Doypack, Flow packs) tested into dedicated pucks
      • Products: Solid, Semi-solid, Powder, Liquid
      • Container Dimensions: Up to 50 x 80 x120 mm
      • Speed: Up to 220 cpm
      • Technology: CCIT
      • Inspection Features: Non-Invasive, Non-Destructive CCIT based on Vacuum & Pressure Decay Method
      • Inspection Capabilities: Microleaks detection
      icon-20

      Additional Benefits

      icon-12
      • Full batch control testing: fast, reliable and repeatable
      • Testing of all nominal production line speed
      • MES (Manufacturing Execution System connection) allows remote machine data exchange & download
      • Statistical Process Control reduces deviations for a better yield control
      • Real time display of testing cycle diagrams, statistical raw data
      • Easy, quick and safe remote access
      • AHE (Automatic Head Exclusion)
      • Easy cleaning
      icon-21

      Technology

      icon-12
      • Container Closure Integrity Testing is a nondestructive measurement technology based on Vacuum Decay Method. Measurement system comprises applying a pressure differential into an airtight testing group enclosing the container. The test objective is to detect container leakages by measuring the reached vacuum level as well as the vacuum change over test time.
      icon-22

      Quality Assurance

      icon-12
      • Equipment test method refers to:
        • Approved industry standard “ASTM F2338-09”: “Standard Test Method for Non-Destructive Detection of Leaks in Packages”
        • FDA 21 CFR part 11 as well as EMA Annex 11
