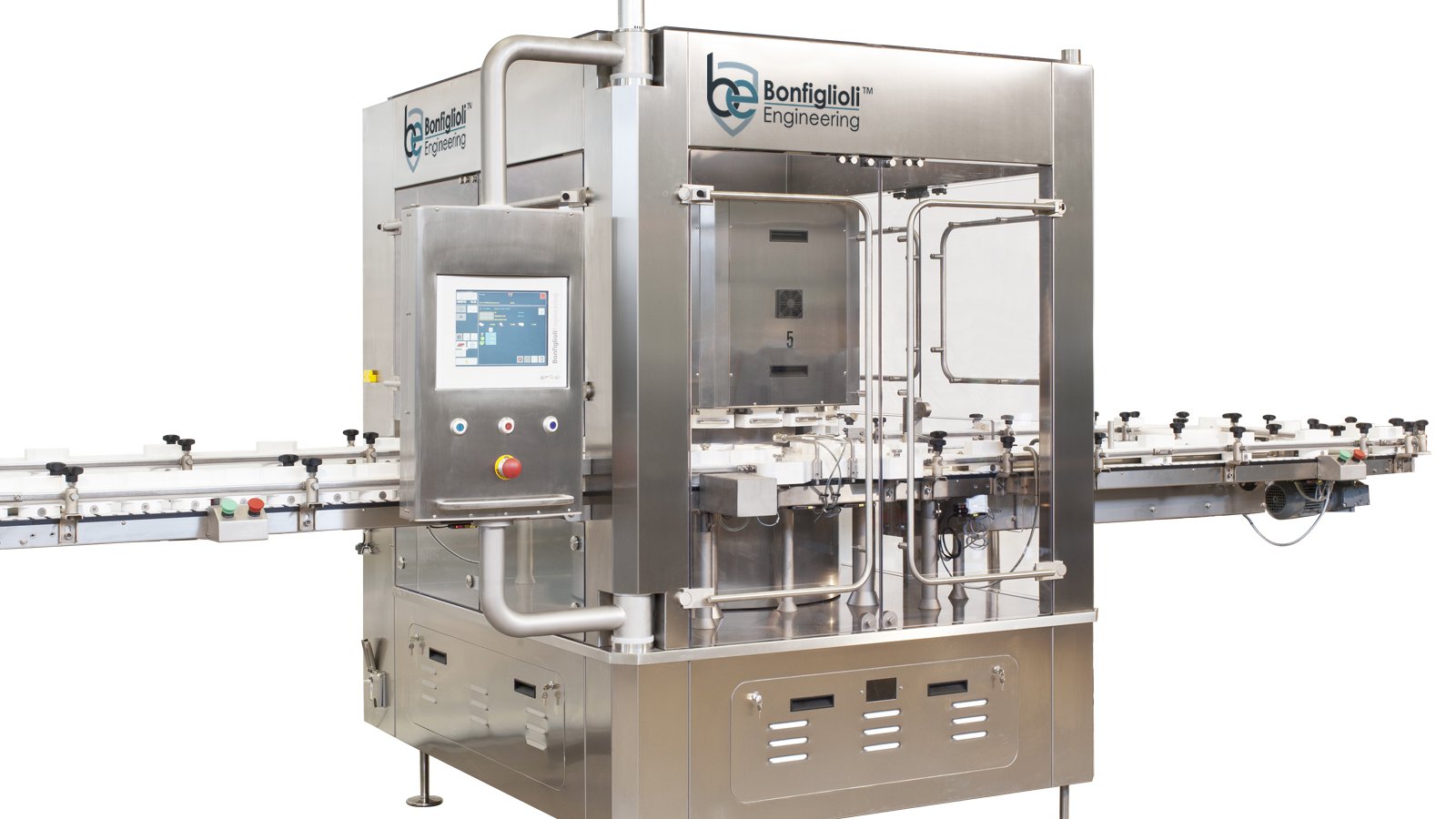

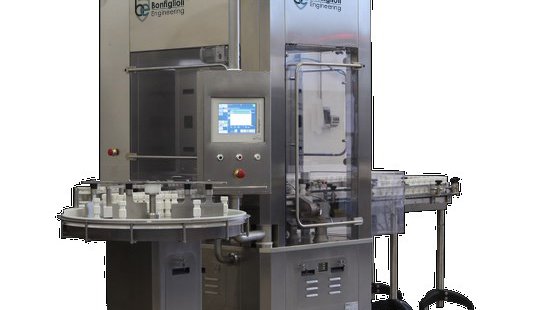

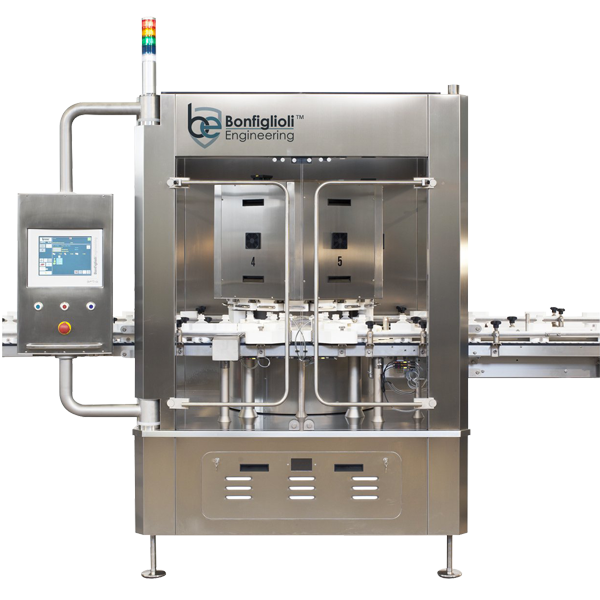

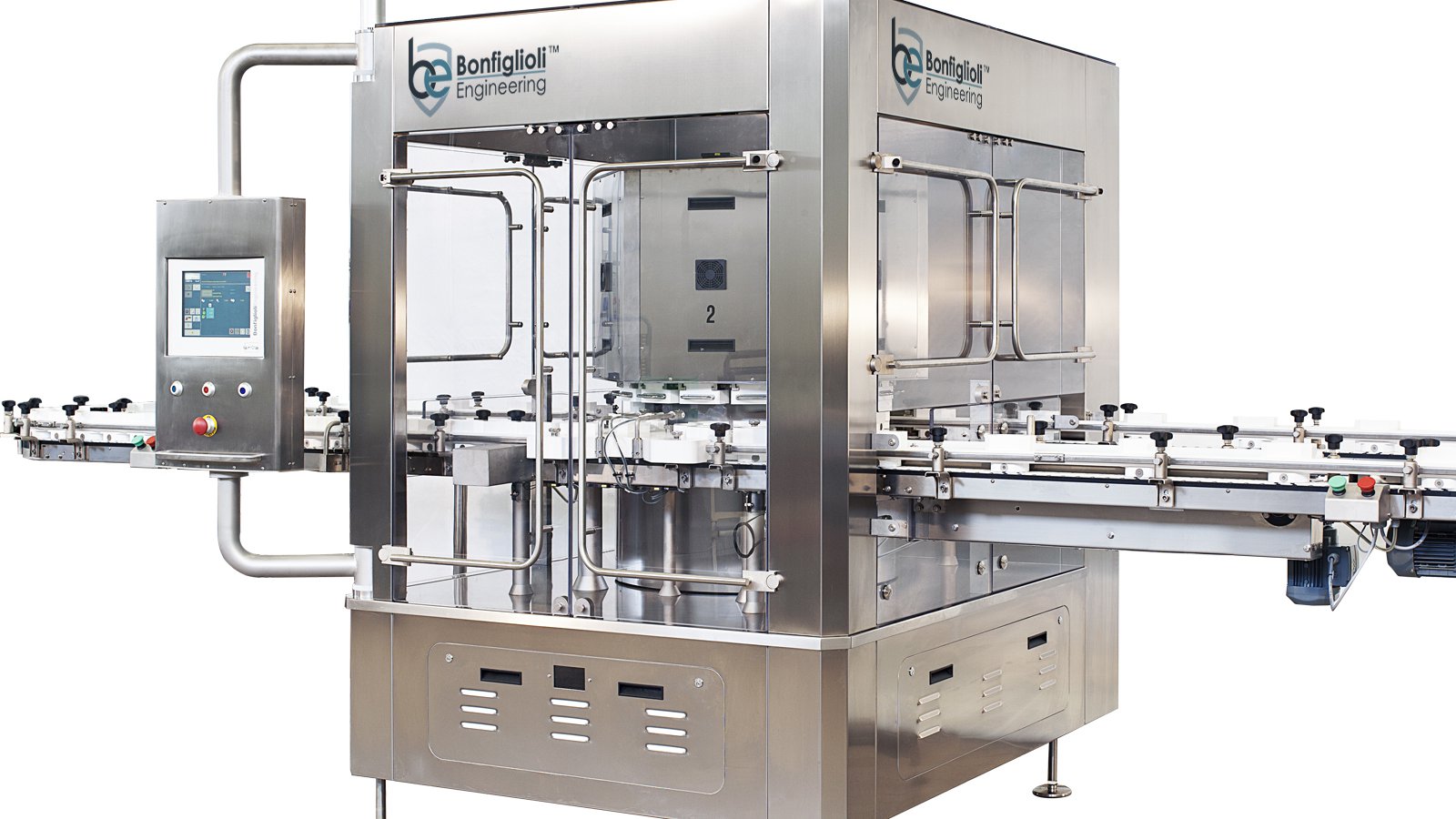

      PK-VG In-line Pharmaceutical on-pucks Tester

      Pharmaceuticals

      Non-Invasive, Non-Destructive, 100% in-line Integrity Inspection System Testing at high production speed for all pharmaceutical containers tested into dedicated Pucks

      icon-01 PLAY VIDEO

      Ampoules

      BFS

      Bottles

      Carpoules

      FFS

      Flowrapped Device

      Food

      IV Bags

      MDI

      MDPI

      Filled Pharmaceutical Monobloc Aerosol Cans

      Pouches

      Prefilled Syringes

      Vials

      Flowpacks

      Tech specifications
      icon-23

      Highlights

      • Autotest in real time
      • Easy to validate
      • CFR 21 part 11 compliance and 4.0 full integration
      • Quick format High flexibility of containers to be tested changeover
      • Automatic Drying System, no pucks contamination
      Contact Us
      PK-VG | In-line Pharmaceutical on-pucks Tester Contact Us
      icon-19

      Technical Features

      icon-12
      • Container Application: all pharmaceutical containers tested into dedicated pucks
      • Products: Semi-solid, Powder, Lyo, Liquid
      • Container Dimensions: up to 50 x 80 x120 mm
      • Speed: up to 220 Cpm
      • Technology: CCIT
      • Inspection features: Non-Invasive, Non-Destructive CCIT based on Vacuum Decay Method
      • Inspection Capabilities: Microleaks detection
      icon-20

      Additional Benefits

      icon-12
      • Full batch control testing: fast, reliable and repeatable
      • Testing of all nominal production line speed
      • MES (Manufacturing Execution System connection) allows remote machine data exchange & download
      • Statistical Process Control reduces deviations for a better yield control
      • Real time display of testing cycle diagrams, statistical raw data
      • Easy, quick and safe remote access
      • AHE (Automatic Head Exclusion)
      • Easy cleaning
      icon-21

      Technology

      icon-12
      • Container Closure Integrity Testing is a non-destructive measurement technology based on Vacuum Decay Method.
        Measurement system comprises applying a pressure differential into an airtight testing group enclosing the container.
        The test objective is to detect container leakages by measuring the reached vacuum level as well as the vacuum change over test time.
      icon-22

      Quality Assurance

      icon-12
      • Equipment test method refers to:
      • Approved industry standard “ASTM F2338-09”: “Standard Test Method for Non-Destructive Detection of Leaks in Packages”
      • United States Pharmacopoeia – USP General Chapter «1207» “Packaging Integrity Evaluation”
      • EU Guidelines to GMP Medicinal Products for Human and Veterinary Use – Annex 1 “Manufacture of Sterile Medicinal Products”
      • PDA Technical Report No. 27 “Pharmaceutical Package Integrity”
      • FDA 21 CFR part 11 as well as EMA Annex 11
