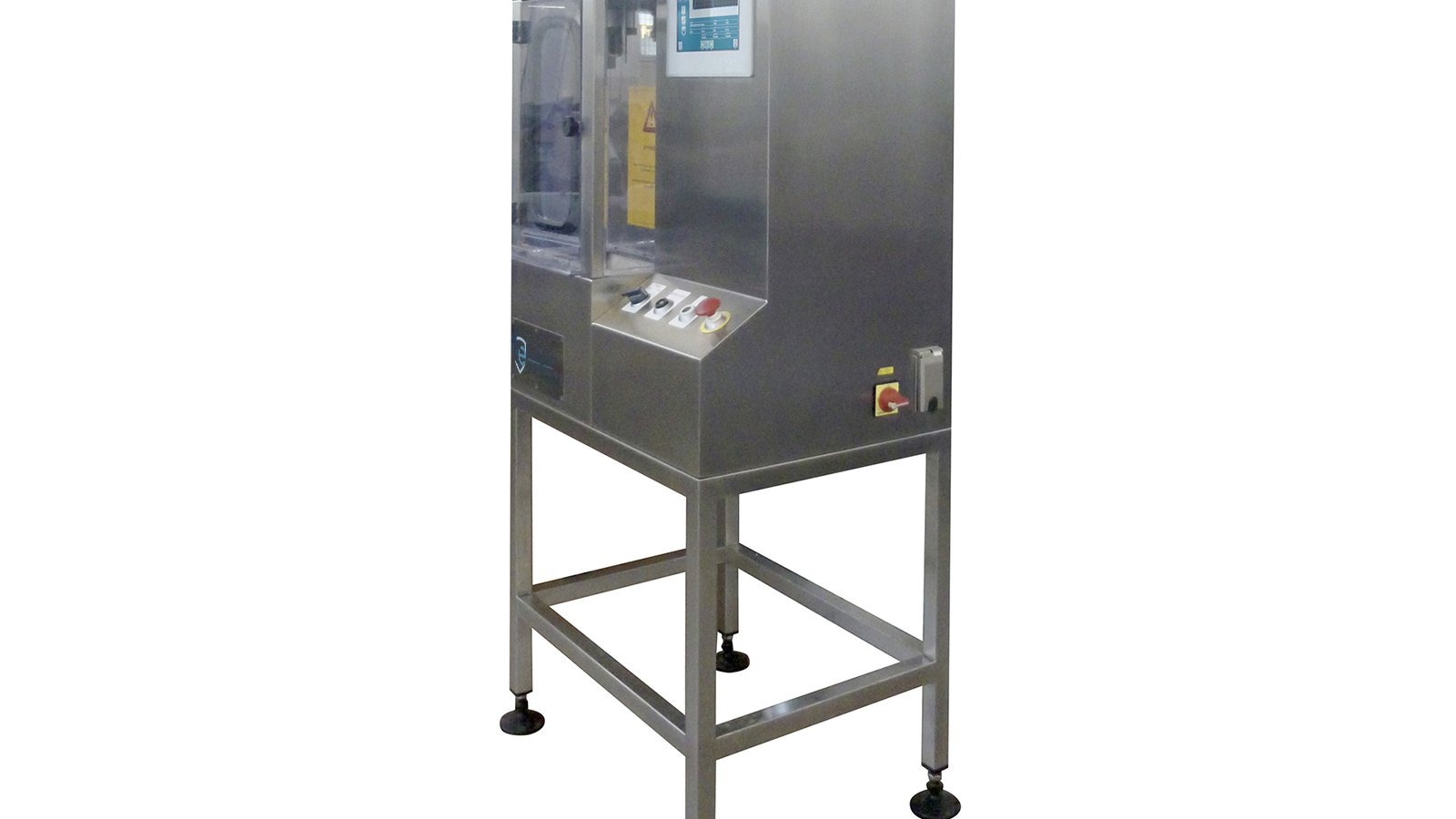

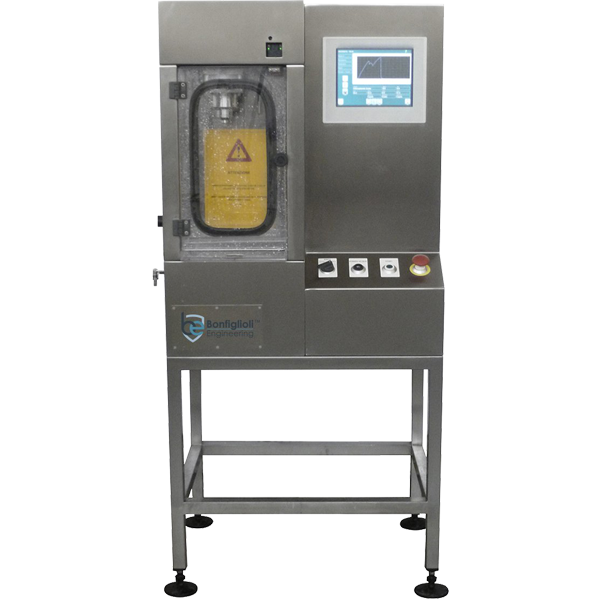

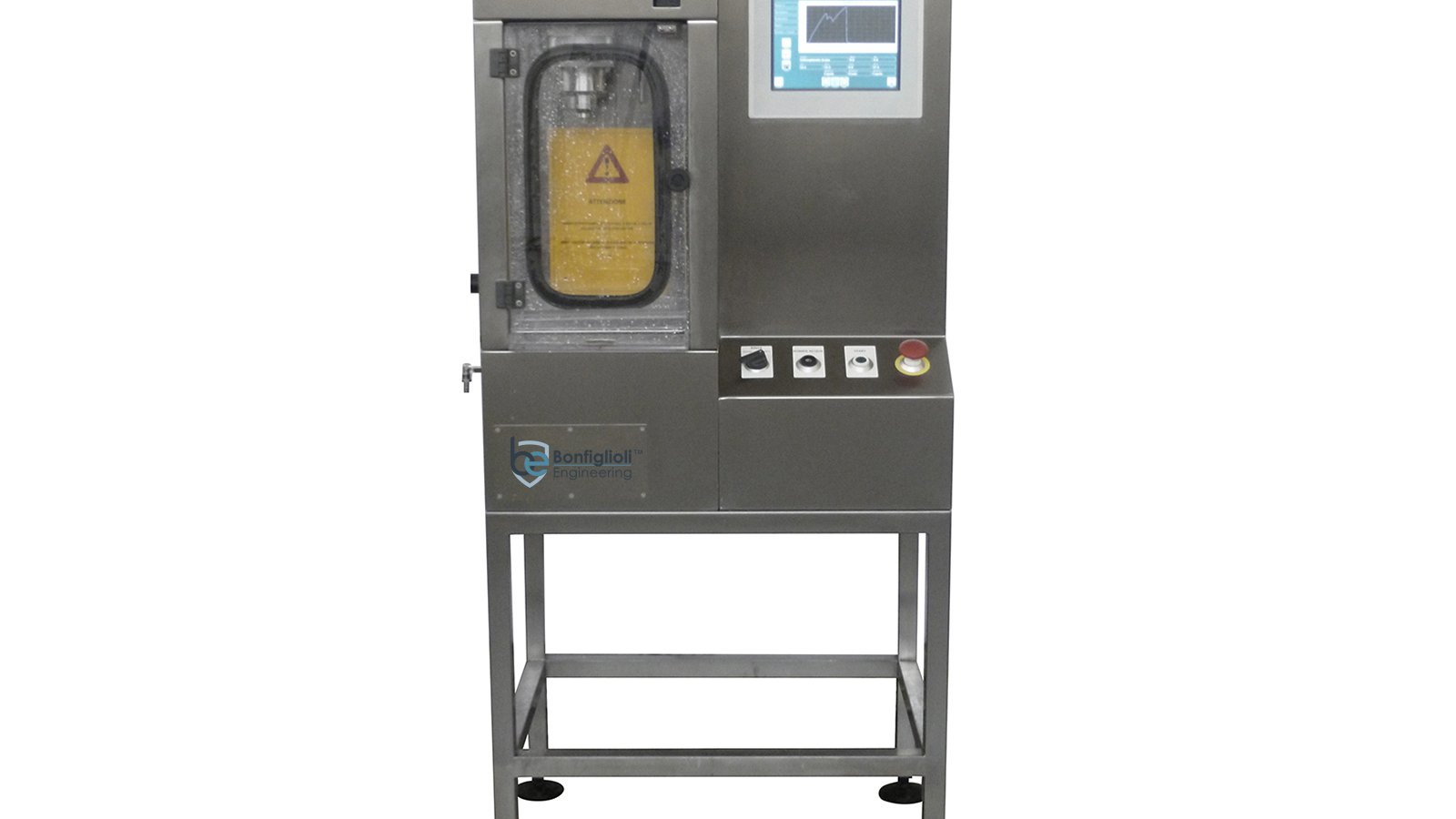

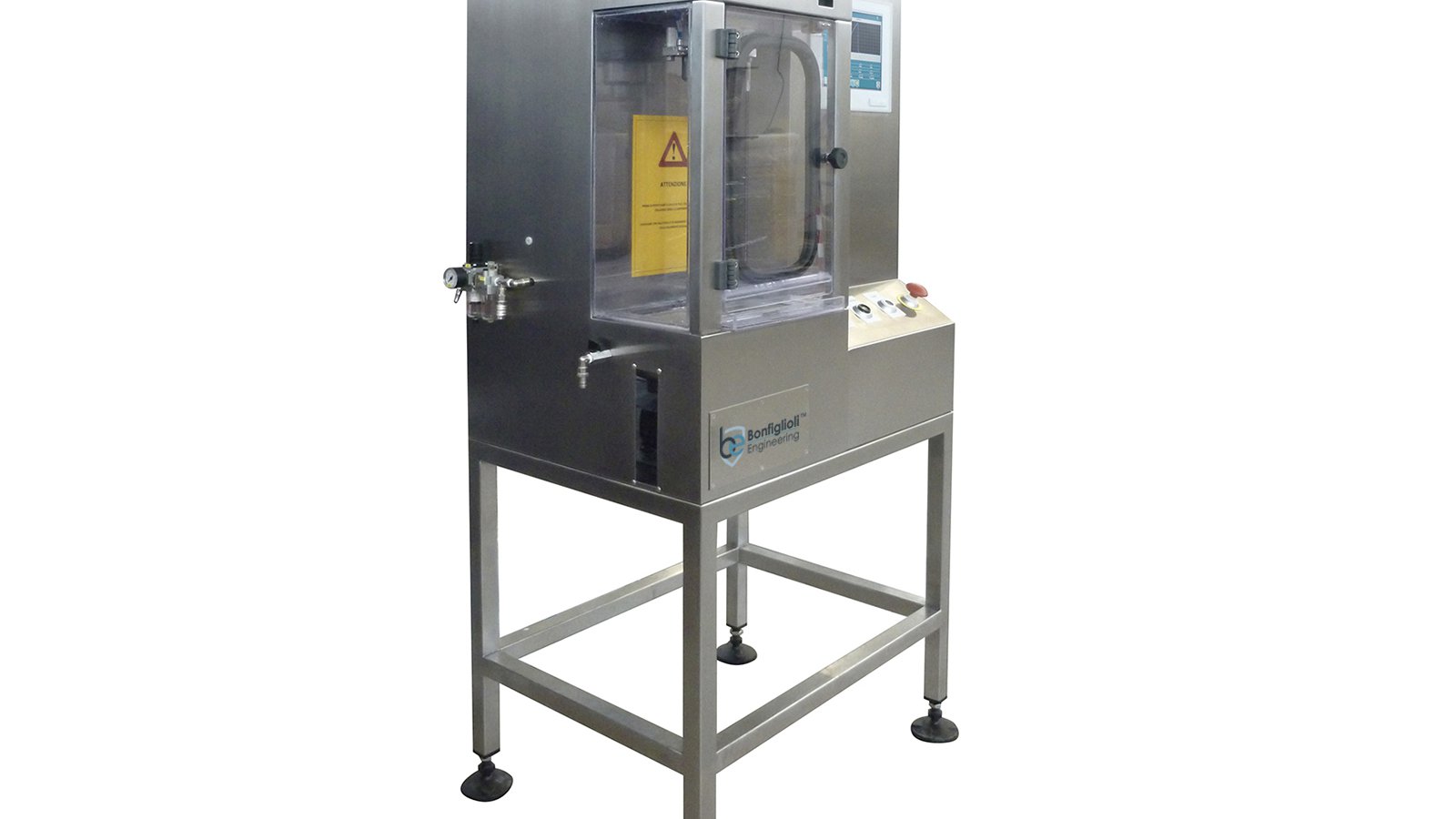

      LF-BURST E Leak Tester

      Metal Cans & Aerosols

      Off-line destructive burst Integrity Inspection System for empty aerosol cans.

      Aerosol

      Tech specifications
      icon-23

      Highlights

      • No Programming required to set up
      • No Training Required
      • Easy Installation, set up and operation
      • High Degree of Repeatability
      • Low Operating and Maintenance Cost
      • Specially designed testing gripper
      • Dual station cylinder to reach high pressure (up to 25 bar)
      Contact Us
      LF-BURST E | Leak Tester Contact Us
      icon-19

      Technical Features

      icon-12
      • Container Application: Aerosol cans
      • Products: Empty
      • Container Dimensions: From 45 x 45 x 70mm (min) to 65 x 65 x 320mm (max)
      • Speed: up to 4 Cpm
      • Technology: “Collapsing and explosion pressure test”
      icon-20

      Additional Benefits

      icon-12
      • Low investment cost
      • RS-232 port to download all the checking data or to be connected with a local printer
      • Electronic operation and control
      • Water collection tank with submerged pump for refilling aerosol can
      • High-pressure water cylinder
      • Safety Chamber
      • Real time HMI
      • Statistica raw data
      icon-21

      Technology

      icon-12

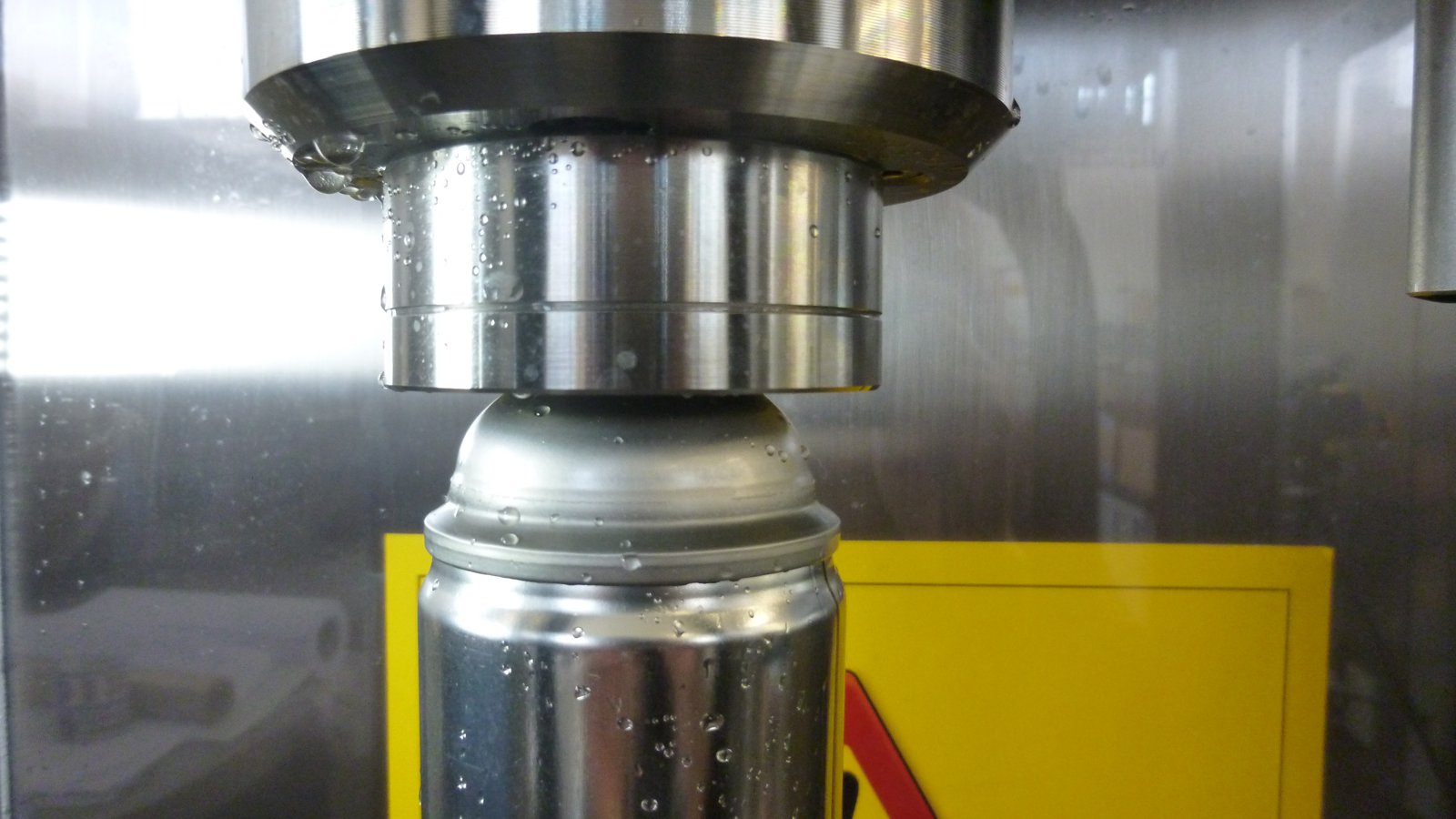

      • The aerosol can is manually loaded into the chamber and held by a special gripper designed for any diameter. The pressure inside the can may reach up to 30 bar by compressing water using a special designed piston using standard shop floor compressed air of 6 bar. Once started the pressure builds up inside the can. The result is illustrated on screen by displaying the testing cycle of pressure vs time.
      • The can will be pressurized to the set pressure and maintained for the set time, at the end of the cycle
        • if the pressure remains within the offset the can is passed as good
        • the pressurization continues recording the deformation point and the explosion point
        • the can will be pressurized until the explosion, recording the deformation point and the explosion point
      • Once the aerosol can bursts the water drops back into the reservoir and it will be used for the next test cycle. A submerged pump fills the can with the recycled water for the next test.
