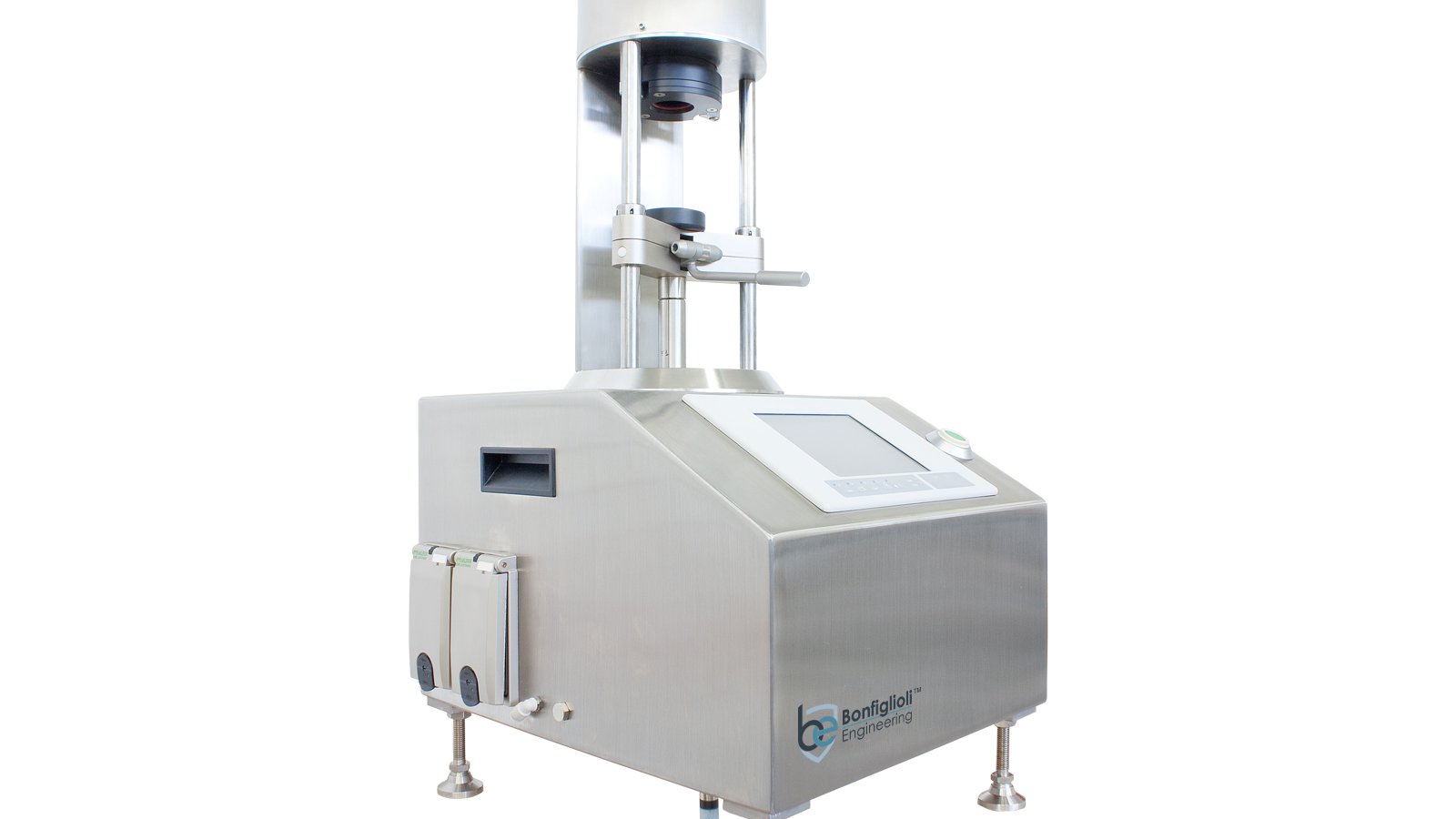

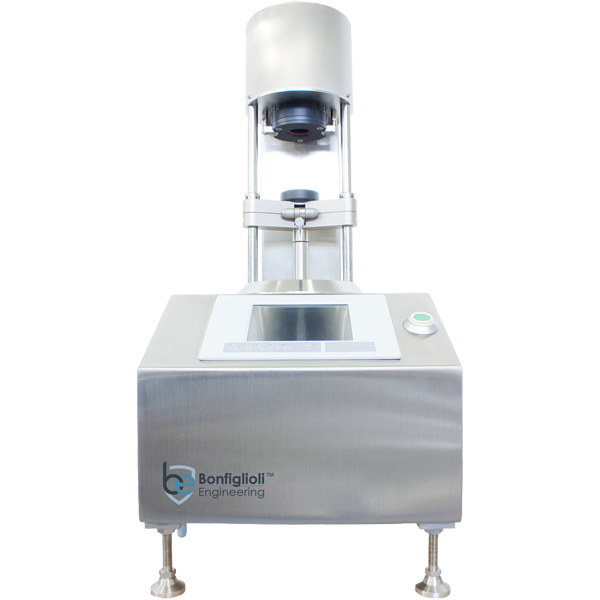

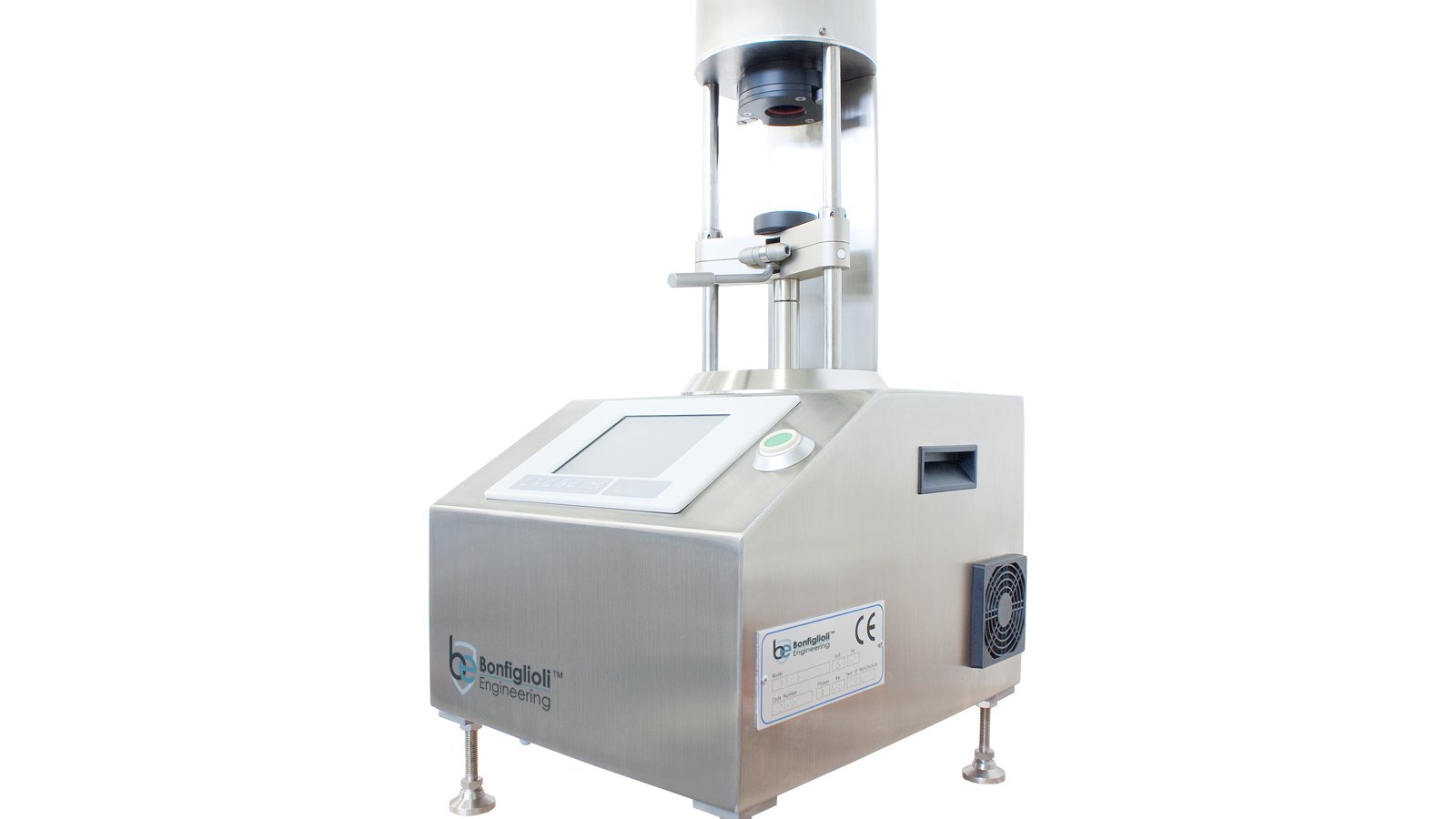

      LF-400A Leak Tester

      Metal Cans & Aerosols

      Off-line Machine for Non-Invasive, Non-Destructive Integrity Inspection for laboratory and in process control applications for filled Aerosol Can.

      MDI

      Filled Pharmaceutical Monobloc Aerosol Cans

      Filled Aerosol

      Monobloc

      Tech specifications
      icon-23

      Highlights

      • Quick and sensitive test
      • Compact & maintenance free
      • Vacuum testing
      • Fast, reliable and repeatable results
      • Applicable to any type of pharmaceutical containers
      • Highly functional, intuitive HMI
      • Cost-effective solution
      Contact Us
      LF-400A | Leak Tester Contact Us
      icon-19

      Technical Features

      icon-12
      • Container Application: Filled Aerosol, Monobloc, MDI
      • Products: Liquid
      • Container Dimensions: From Ø8 X 25 mm (H) to Ø65 x 300 mm (max)
      • Speed: Up to 4 Cpm
      • Technology: CCIT
      • Inspection features: Non-Invasive, Non-Destructive CCIT based on Vacuum Decay Method
      • Inspection Capabilities: Microleaks detection
      icon-20

      Additional Benefits

      icon-12
      • Easy to clean – no hidden corners.
      • Quick format changeover
      • Low power consumption.
      • Real time display of testing cycle diagrams, statistical raw data
      • Easy, quick and safe remote access
      • Barometric Compensation system to avoid any vacuum level reading variations
      • Storage of records: maintenance, production, alarms
      icon-21

      Technology

      icon-12
      • Container Closure Integrity Testing is a non-destructive measurement technology based on Vacuum Decay Method.
      • Measurement system comprises applying a pressure differential into an airtight testing group enclosing the container.
      • The test objective is to detect container leakages by measuring the reached pressure level as well as the pressure change over test time.
      icon-22

      Quality Assurance

      icon-12
      • Equipment test method refers to:
        • Approved industry standard “ASTM F2338-09”: “Standard Test Method for Non-Destructive Detection of Leaks in Packages”
        • United States Pharmacopoeia – USP General Chapter «1207» “Packaging Integrity Evaluation”
        • EU Guidelines to GMP Medicinal Products for Human and Veterinary Use – Annex 1 “Manufacture of Sterile Medicinal Products”
        • PDA Technical Report No. 27 “Pharmaceutical Package Integrity”
        • FDA 21 CFR part 11 as well as EMA Annex 11
        • Specifications on Chapter 3 of “FEA Guide on Hot Water Bath Testing and Its Alternatives”
        • Machine Measurement System follows the approved industry standard "UN/SCETDG/24/INF.49"
