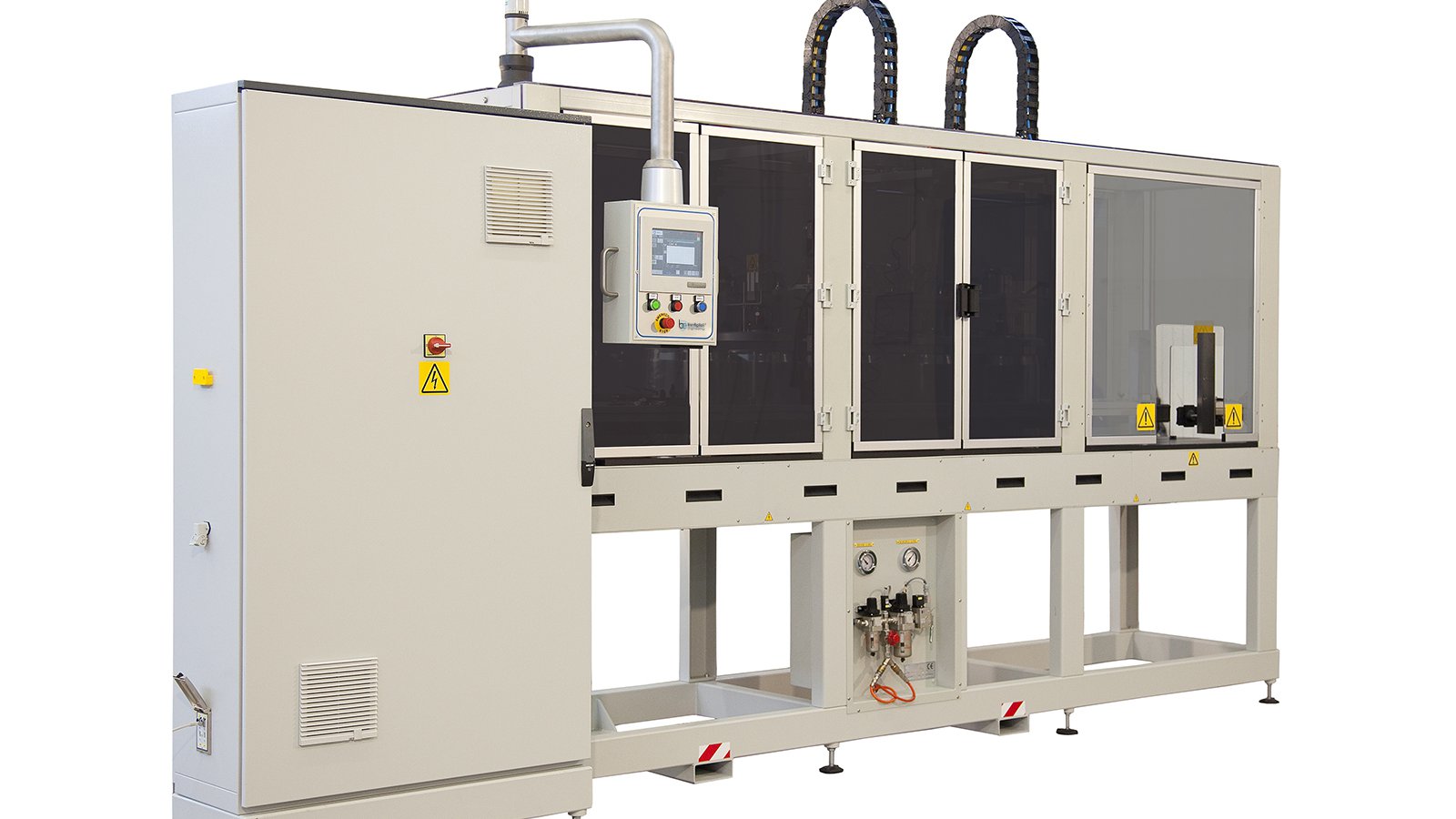

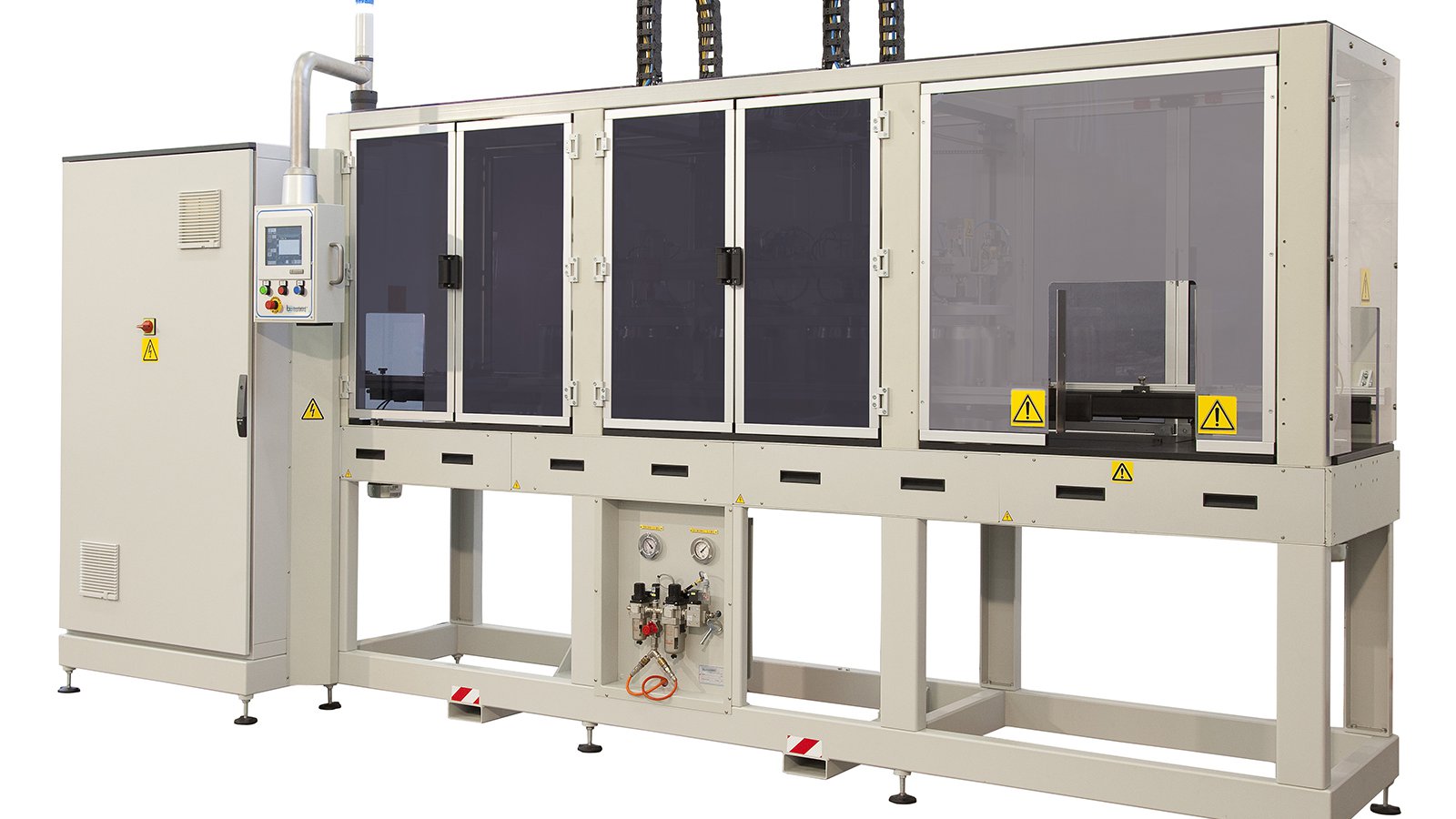

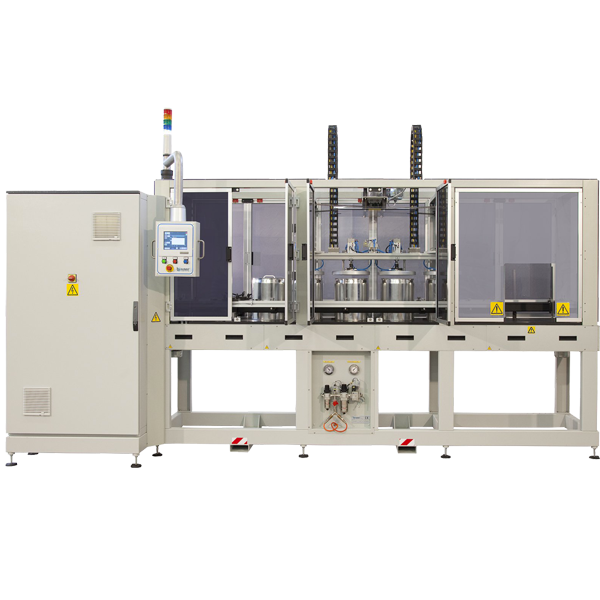

      LD-M Leak Tester

      Metal Cans & Aerosols

      In-line, Non-Invasive, Non-destructive Inspection integrity System for empty containers (Drums and Metal Canning).

      2 Pieces Cans

      Tech specifications
      icon-23

      Highlights

      • Zero alteration of container features
      • Easy management
      • Low energy consumption
      • Low & Ease of maintenance: free access to all moving parts
      Contact Us
      Log in to watch the advanced video Log in
      LD-M | Leak Tester Contact Us
      icon-19

      Technical Features

      icon-12
      • Container Application: Drums and Metal Canning
      • Products: Empty
      • Container Dimensions: From Ø200 mm to Ø350 mm height from 150mm to 500mm
      • Speed: Up to 15-20 Cpm
      • Technology: CCIT
      • Inspection Features: Non-Invasive, Non-Destructive CCIT based on Pressure Decay Method
      • Inspection Capabilities: Microleaks detection
      icon-20

      Additional Benefits

      icon-12
      • Low investment cost
      • Reliability guaranteed above 99%
      • Quick format change

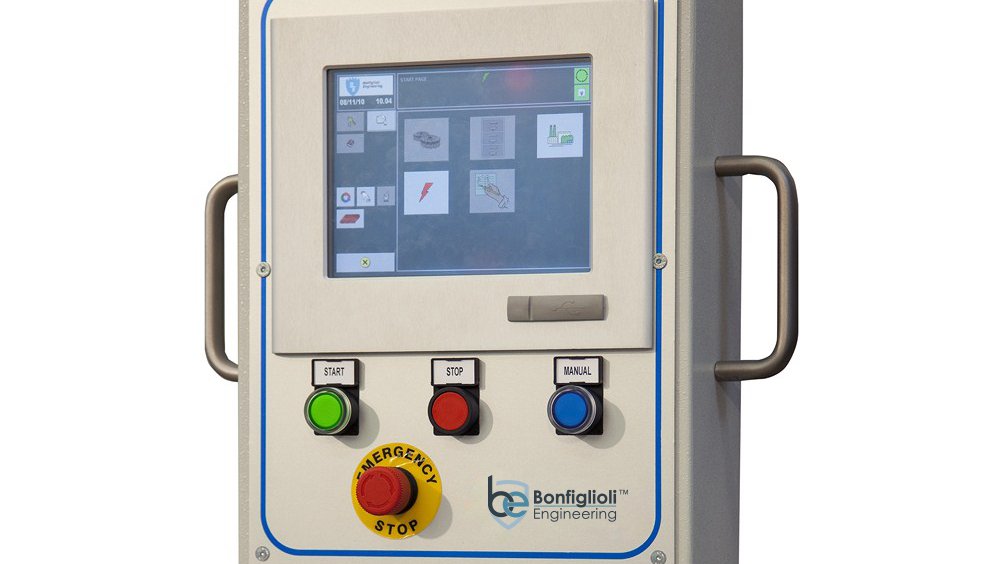

      • HMI real time display of statistics and raw data
      • Noise levels well within allowed limits
      icon-21

      Technology

      icon-12
      • Container Closure Integrity Testing is a non-destructive measurement technology based on Pressure Decay Method.

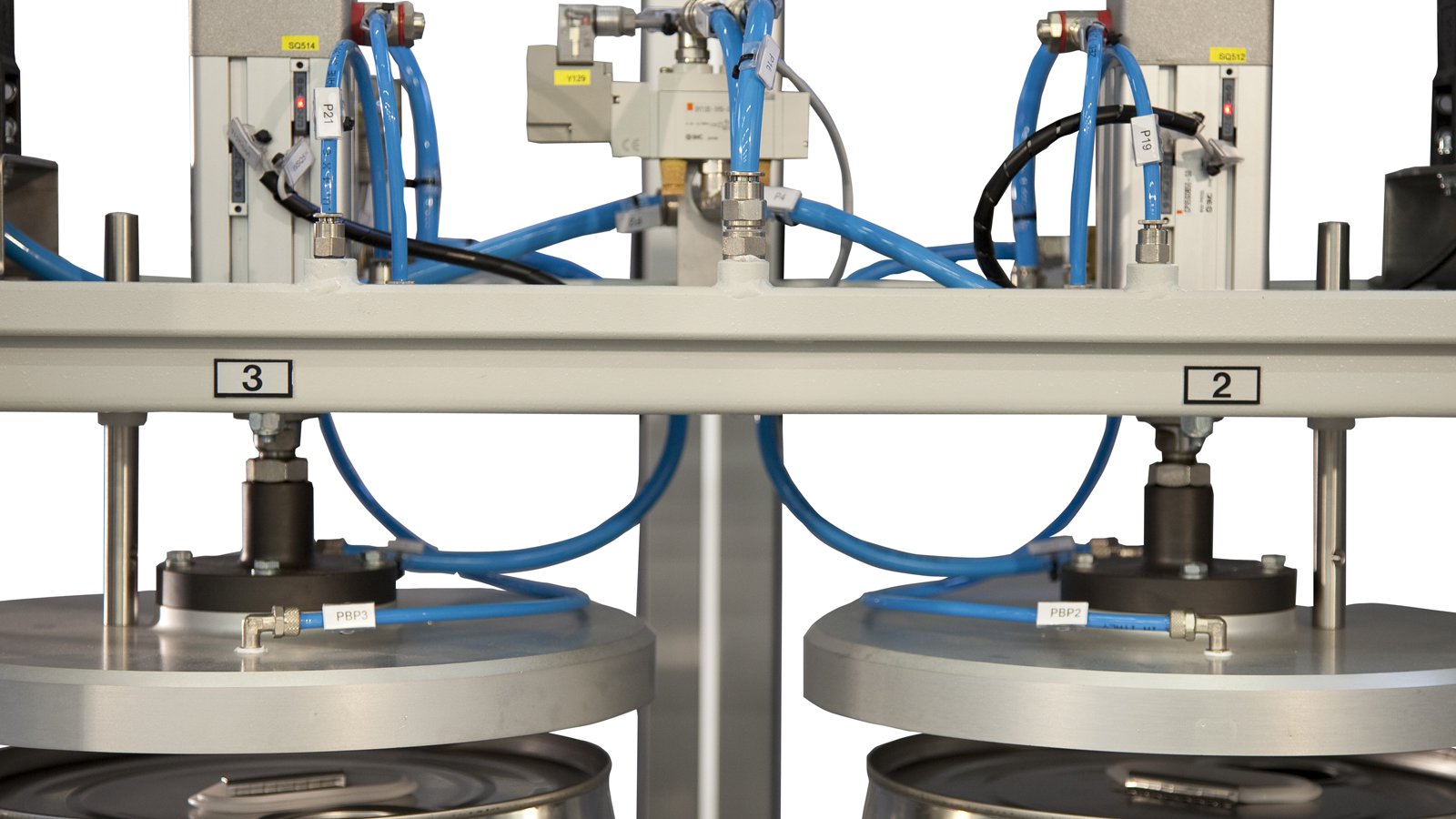

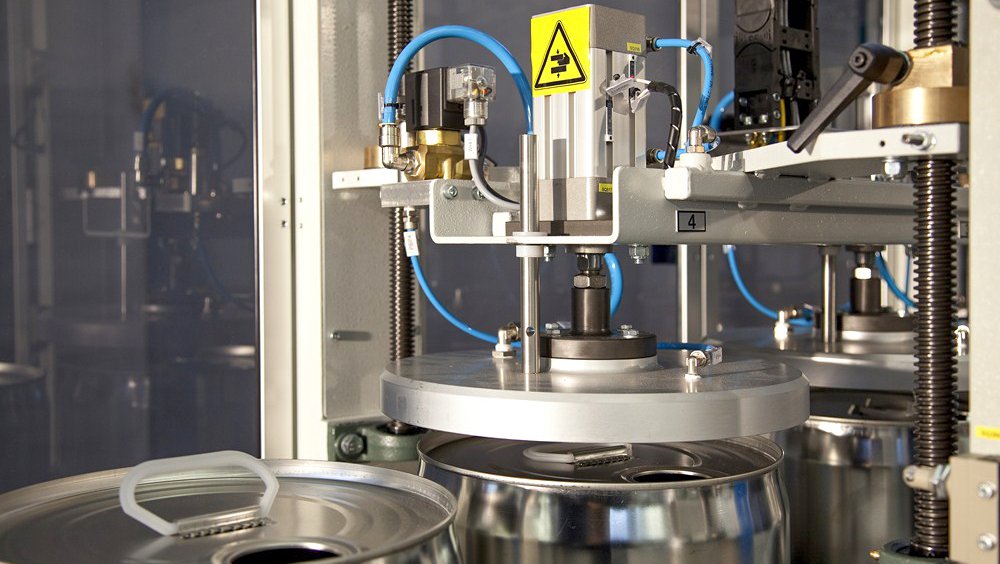

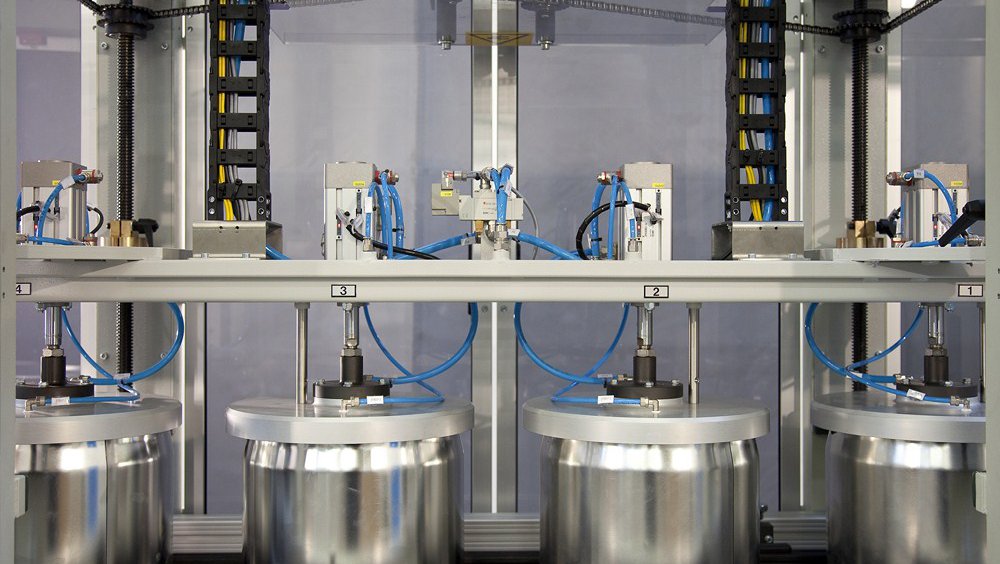

      • Measurement system comprises applying a pressure differential into an airtight testing group enclosing the container.
      • The test objective is to detect container leakages by measuring the reached pressure level as well as the pressure change over test time.
      icon-22

      Quality Assurance

      icon-12
      • Equipment test method refers to:
        • Approved industry standard “ASTM F2338-09”: “Standard Test Method for Non-Destructive Detection of Leaks in Packages”

      Download datasheet
