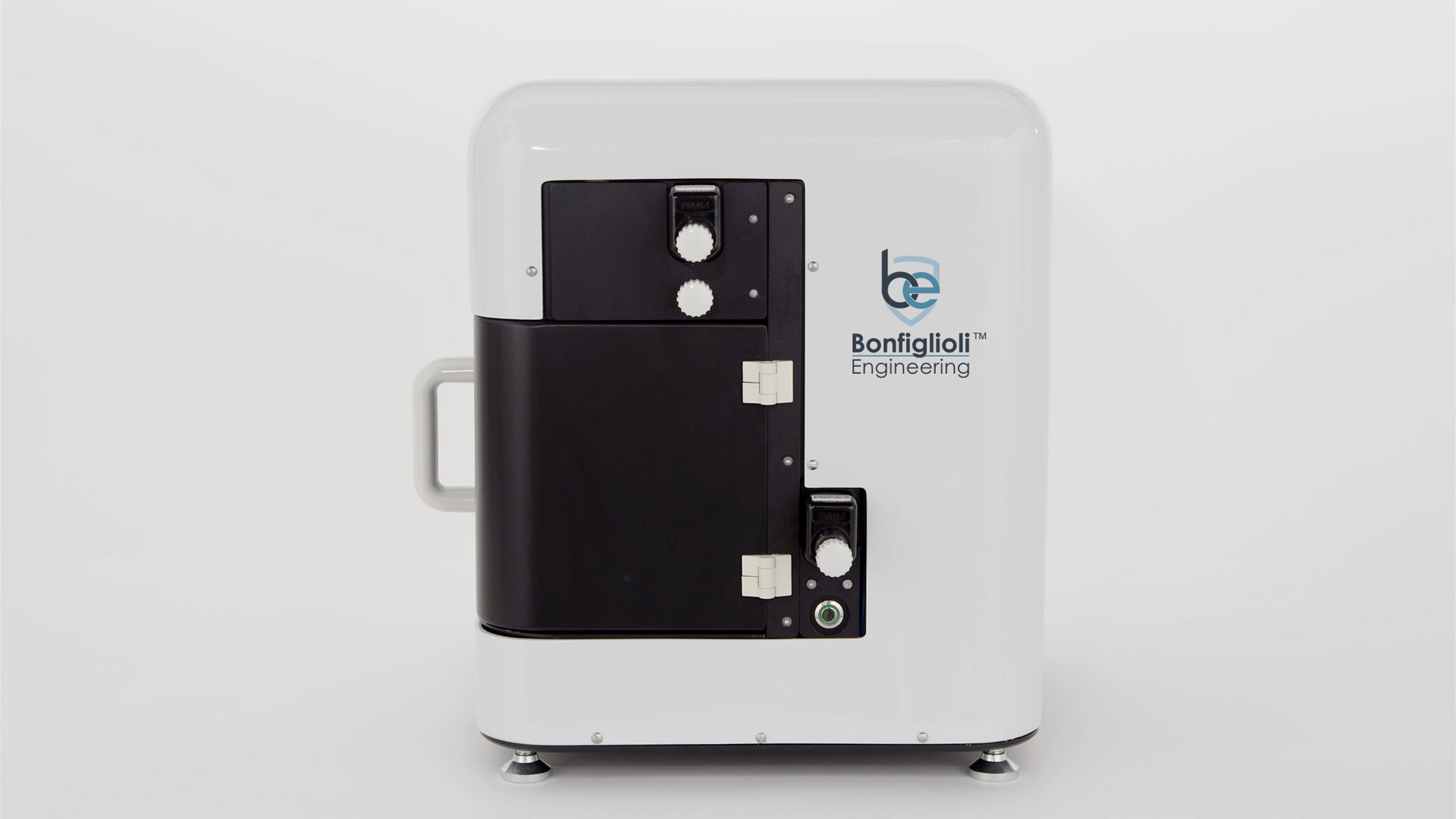

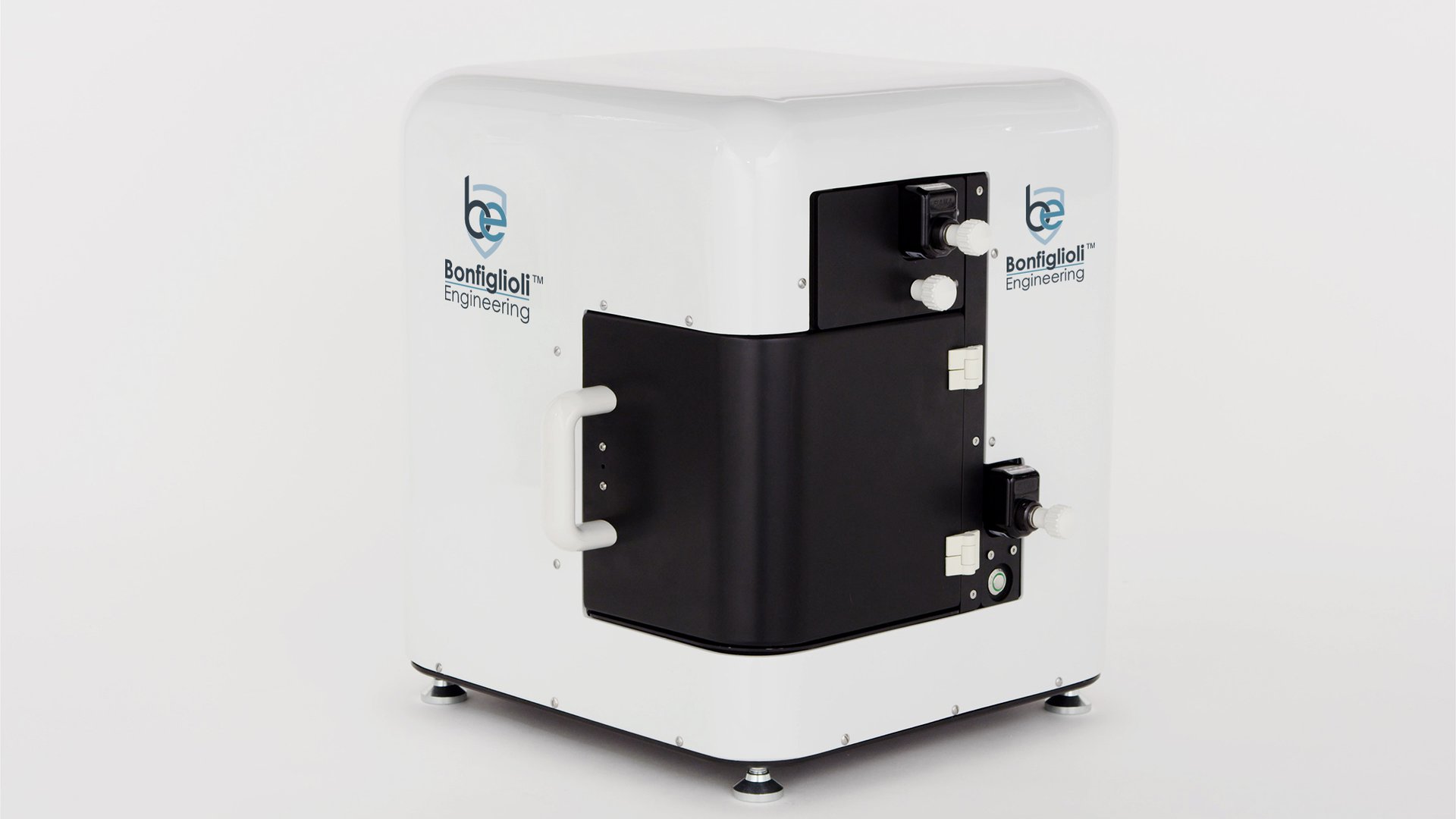

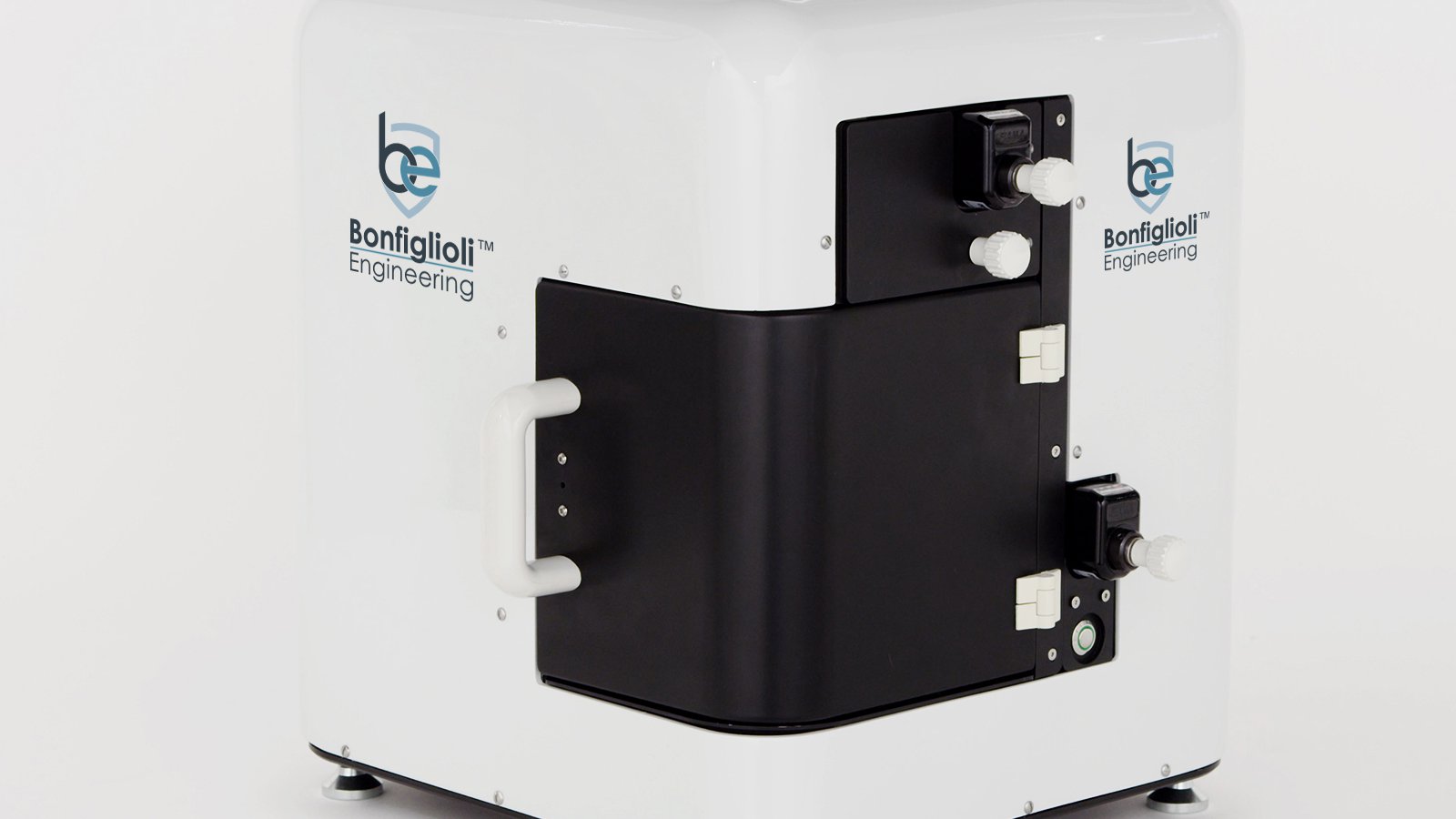

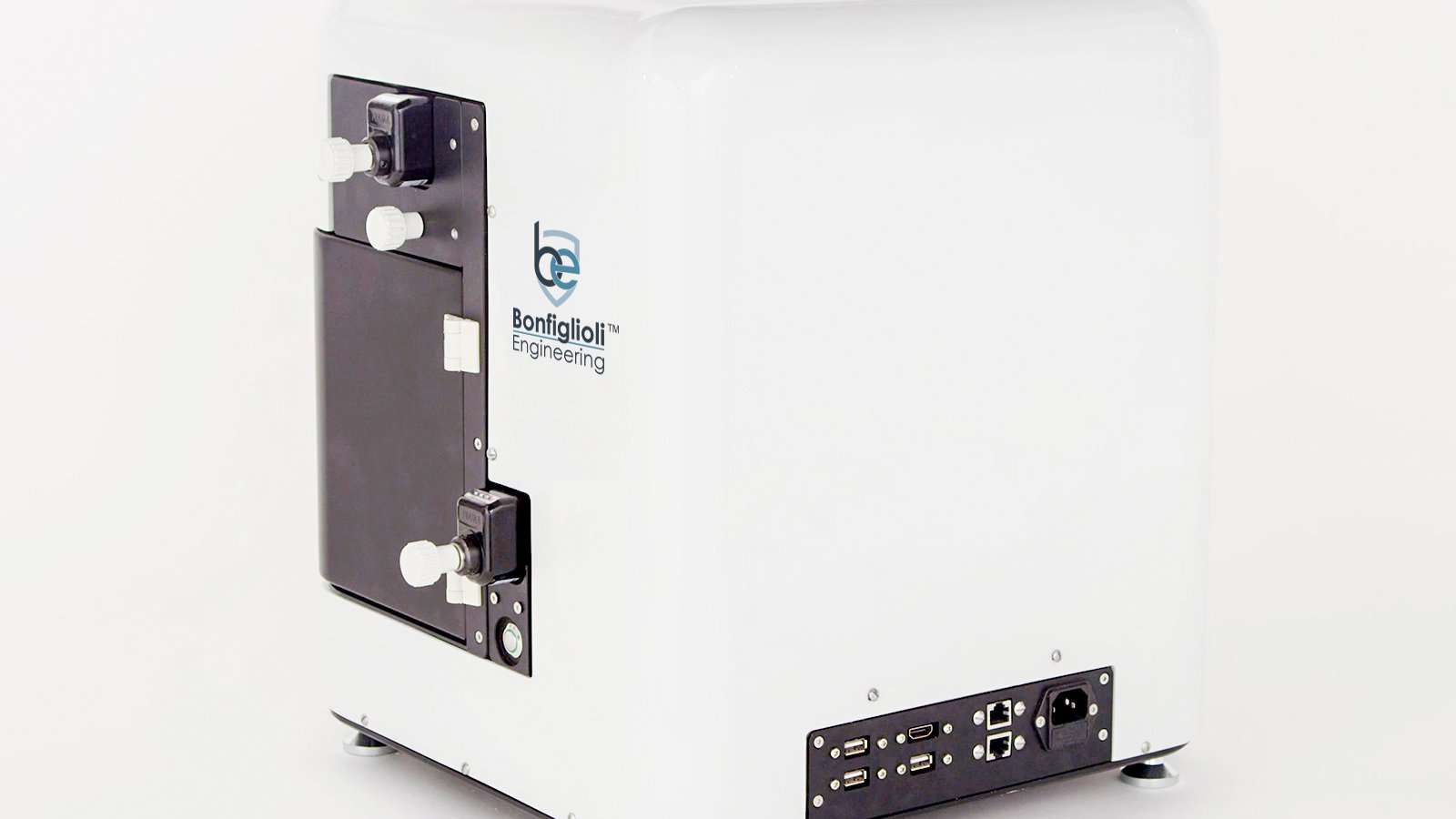

      LASERCUBE Benchtop Headspace Gas Analyzer

      Pharmaceuticals

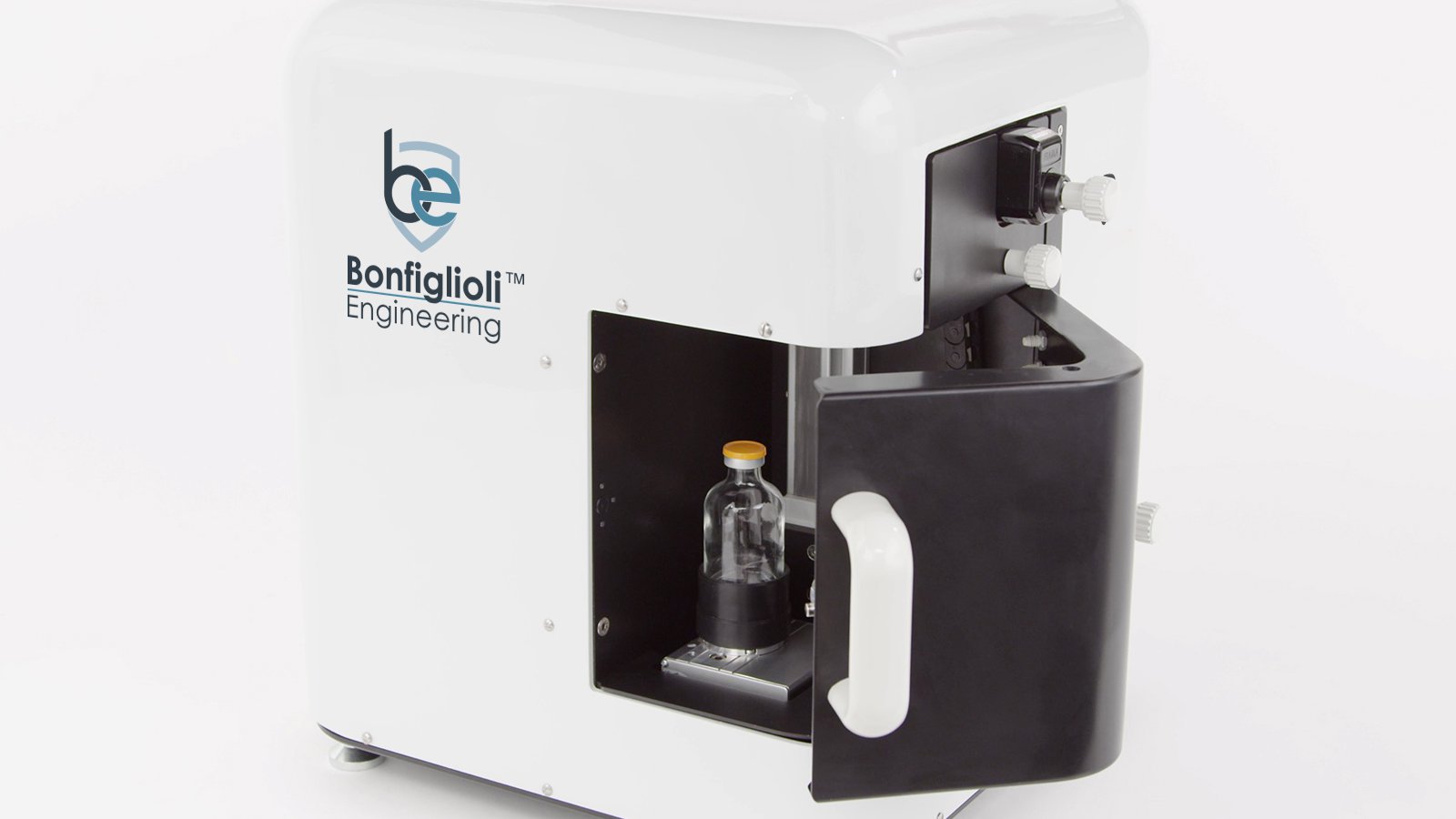

      Lasercube is a benchtop instrument conceivedfor performing the Headspace Gas Analysis (HGA) of sterilepharmaceutical containers. Fully automated test cyclesequencing with manual loading and unloading of containers.

      icon-01 PLAY VIDEO

      Ampoules

      Cartridges

      Prefilled Syringes

      Vials

      Tech specifications
      icon-23

      Highlights

      • Double path system
      • Nitrogen purging not required
      • Automatic height adjustment

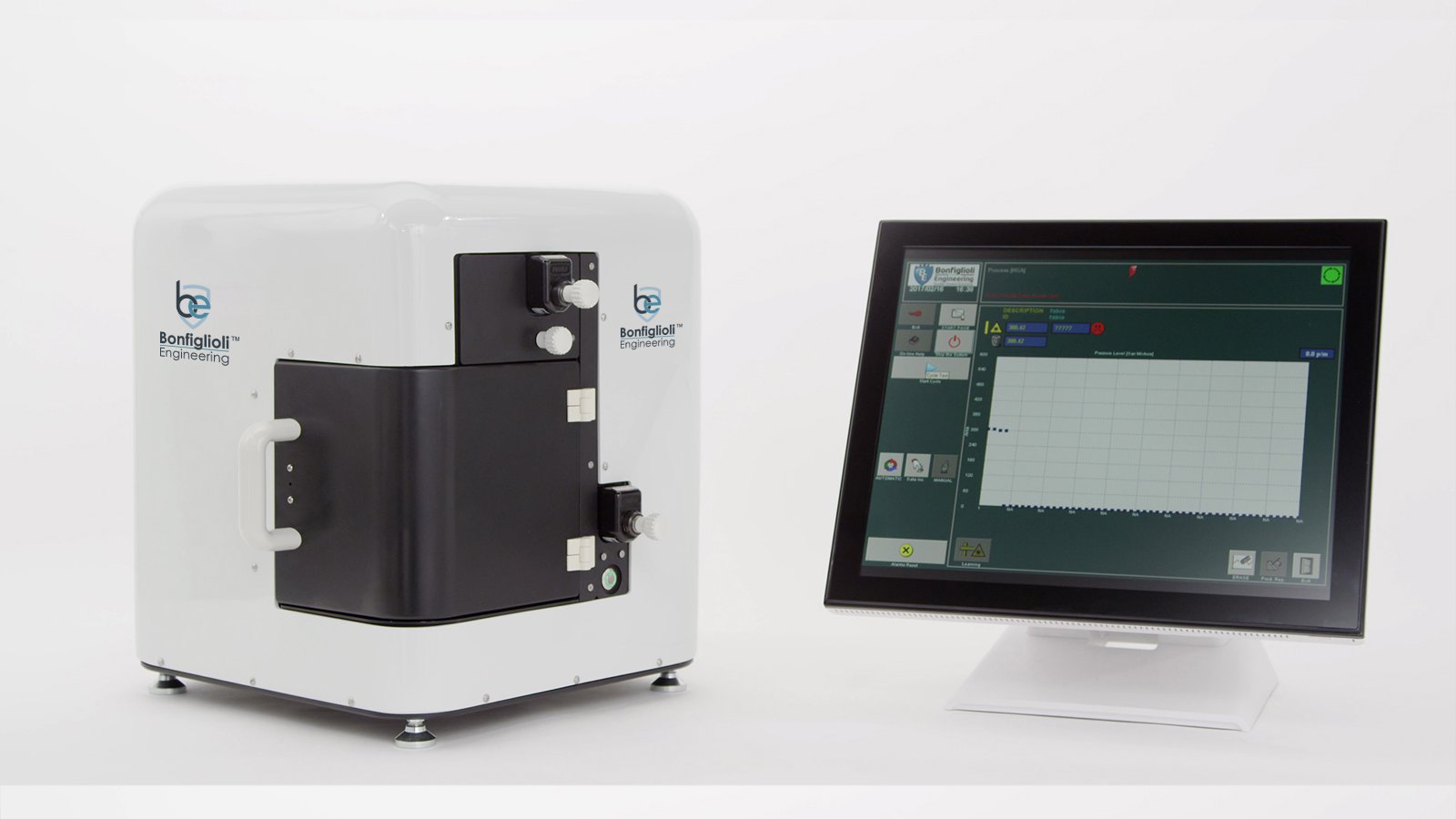

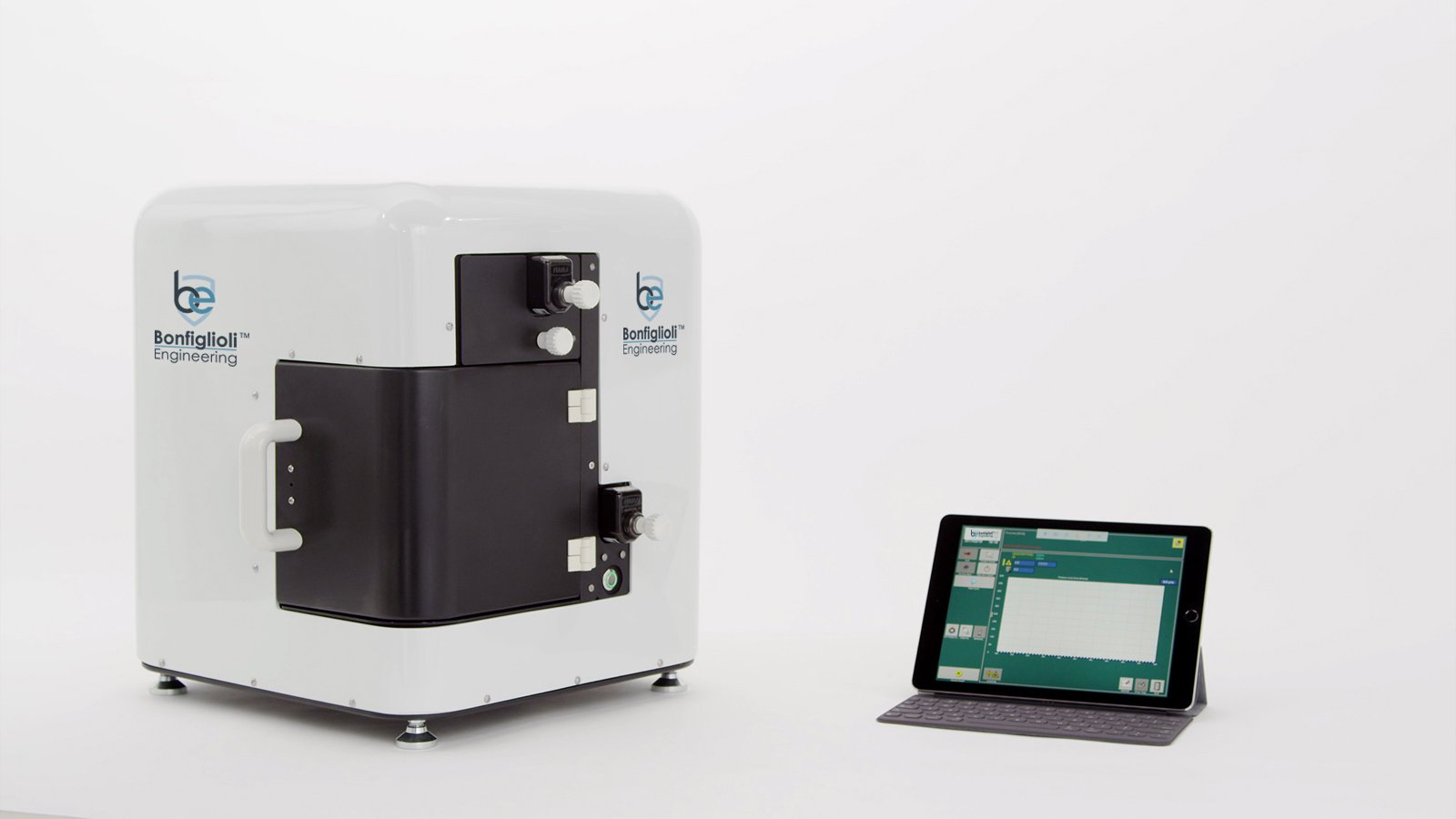

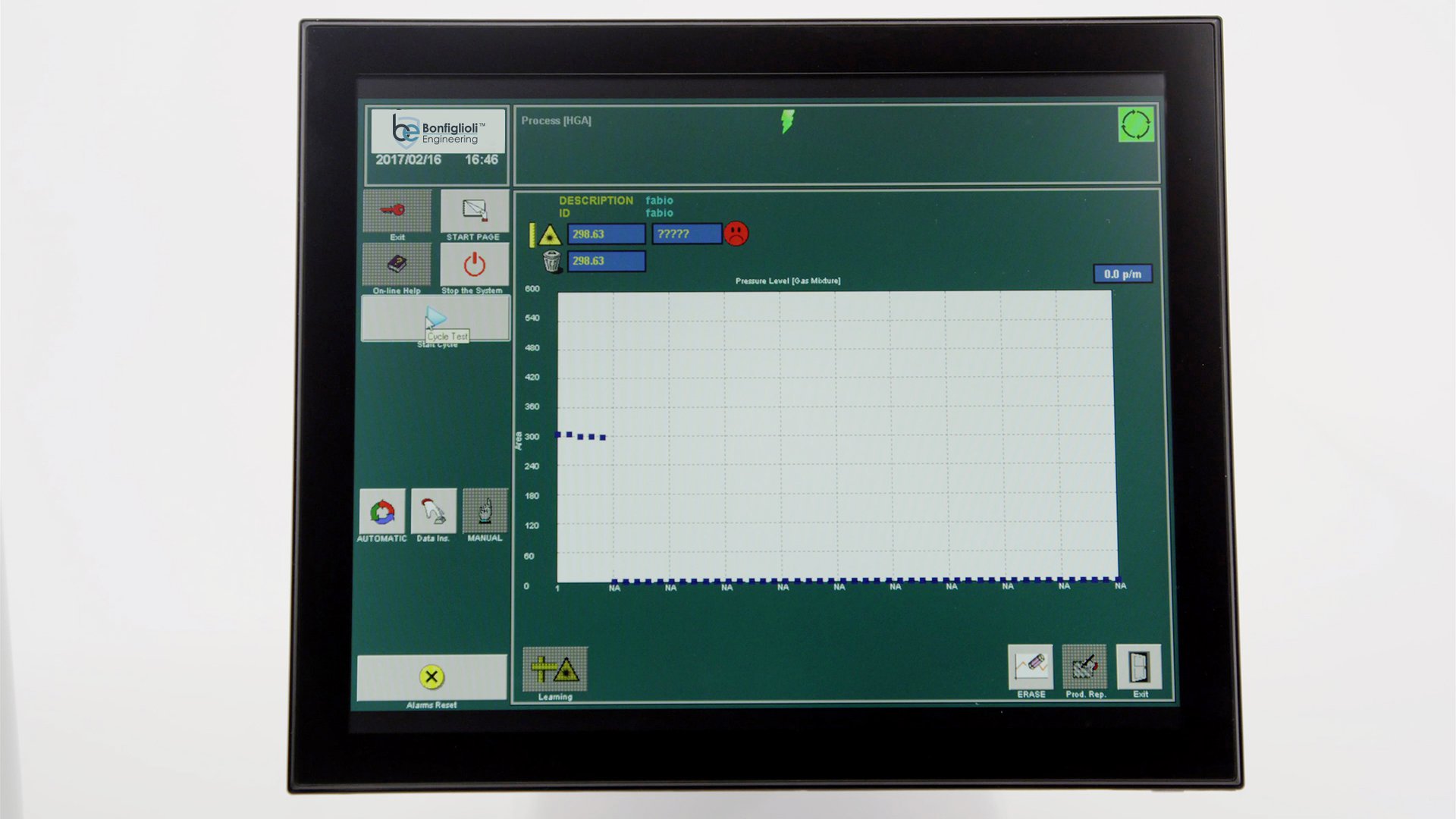

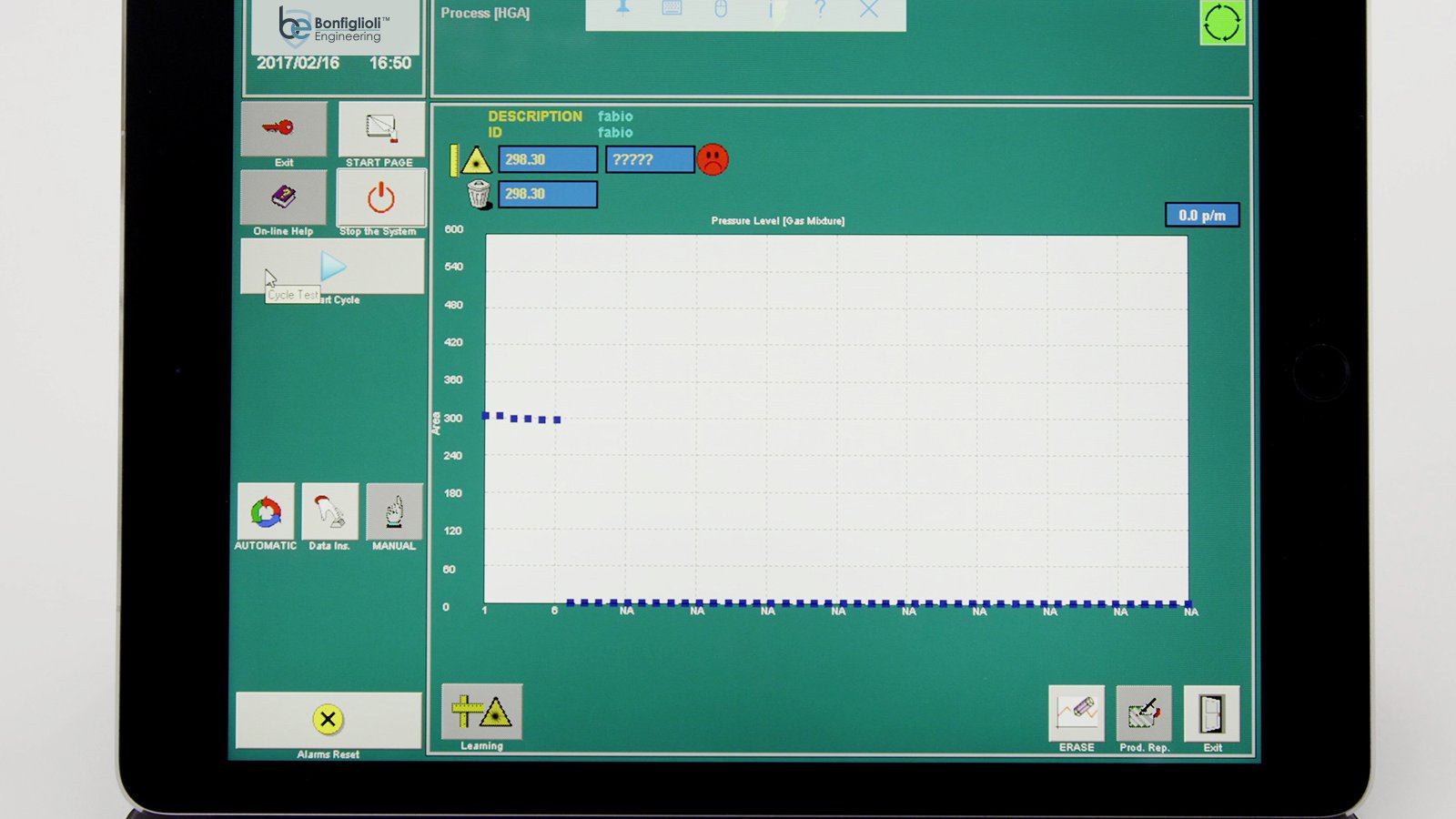

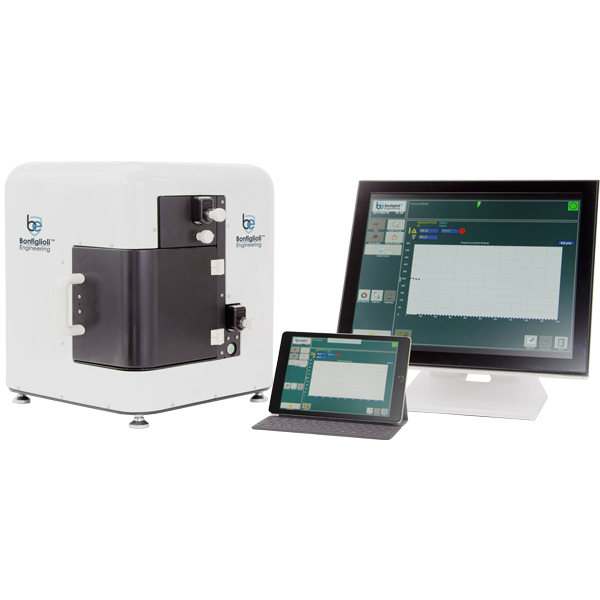

      • HMI real-time display of statistics and raw data



      Contact Us
      LASERCUBE | Benchtop Headspace Gas Analyzer Contact Us
      icon-19

      Technical Features

      icon-12
      • Container Application: Ampoules, Vials, Cartridges, Pre-filled Syringes
      • Products: Freeze dried, Liquid, Powder
      • Container Dimensions: Ø [10 - 69] mm
      • Speed: 4 cpm (max)
      • Technology: Tunable Diode Laser Absorption Spectroscopy (TDLAS)
      • Inspection Features: Non-intrusive, non-destructive, laser-based inspection method
      • Inspection Capabilities: Oxygen/Moisture/Carbon Dioxide level, Absolute Pressure value
      icon-20

      Additional Features

      icon-12
      • Etalon effect negligible
      • No reference container required
      • Extreme stability and accuracy even with limited headspace

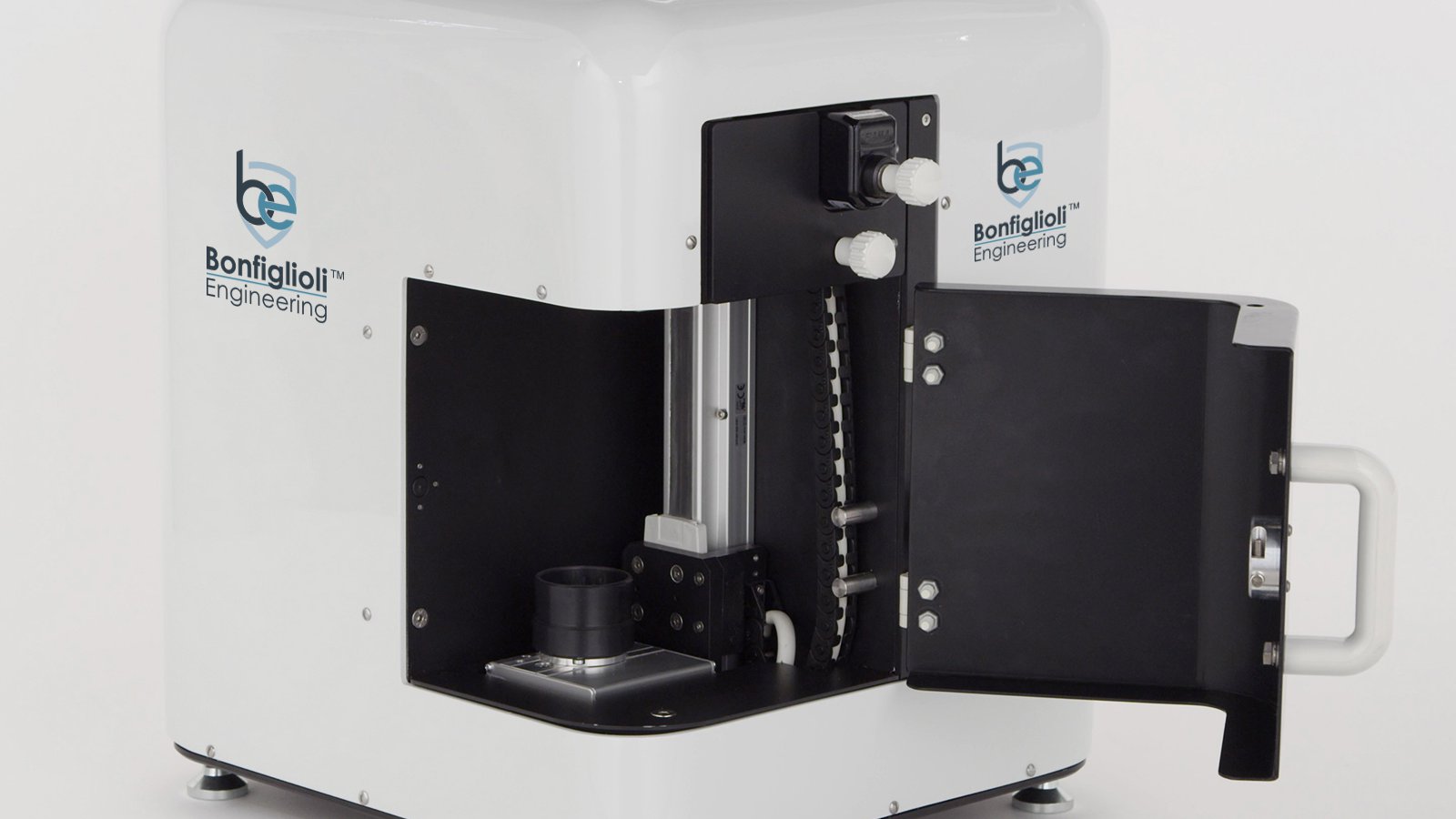

      • Automatic spinning plate for complete container rotation
      • Lightweight
      • Fast, reliable and repeatable results
      • Cost-effective solution with low power consumption
      icon-21

      Technology

      icon-12
      • HGA inspection process based on Tunable Diode Laser Absorption Spectroscopy (TDLAS) method to accurately quantify gaseous concentration levels.

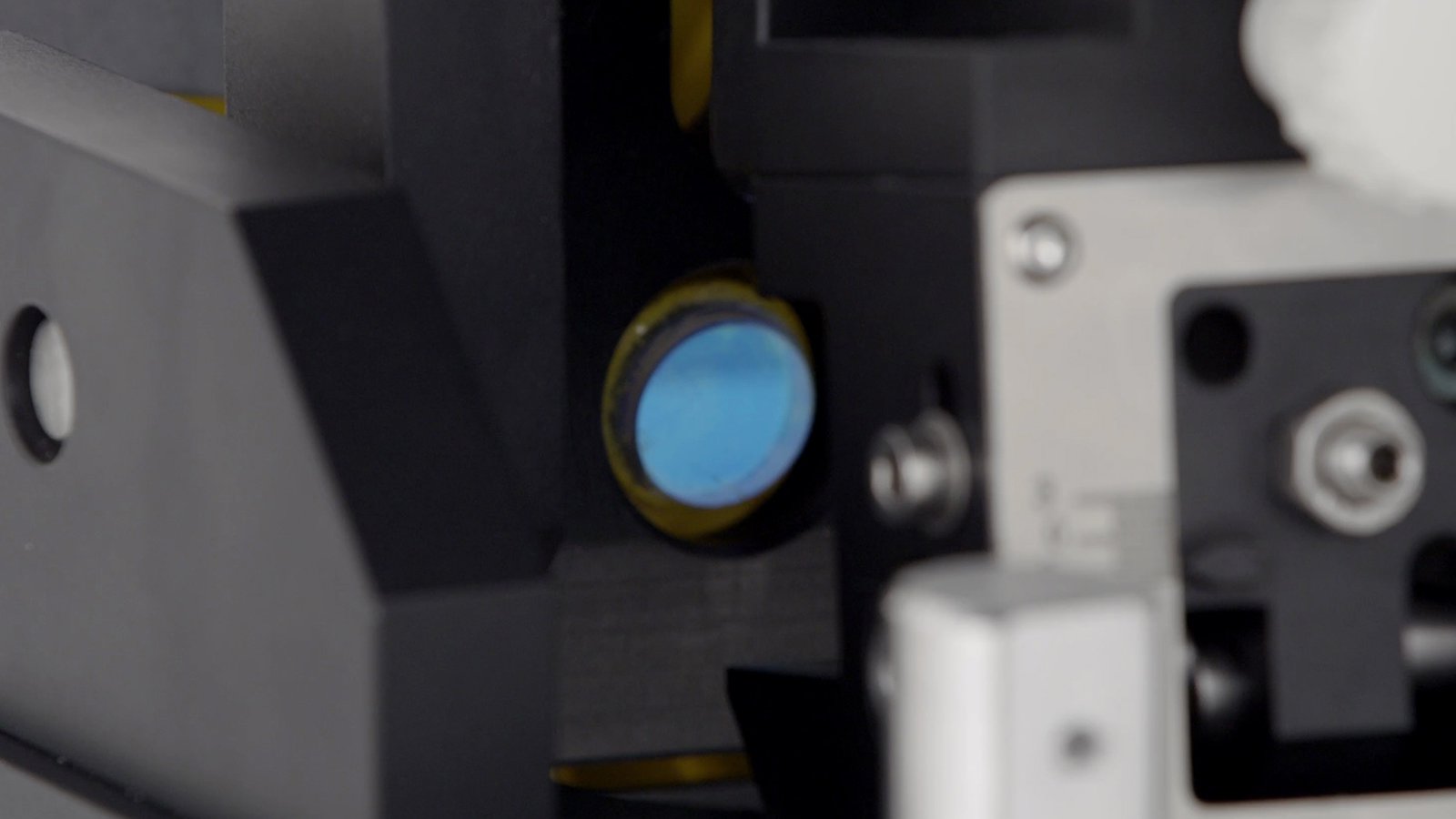

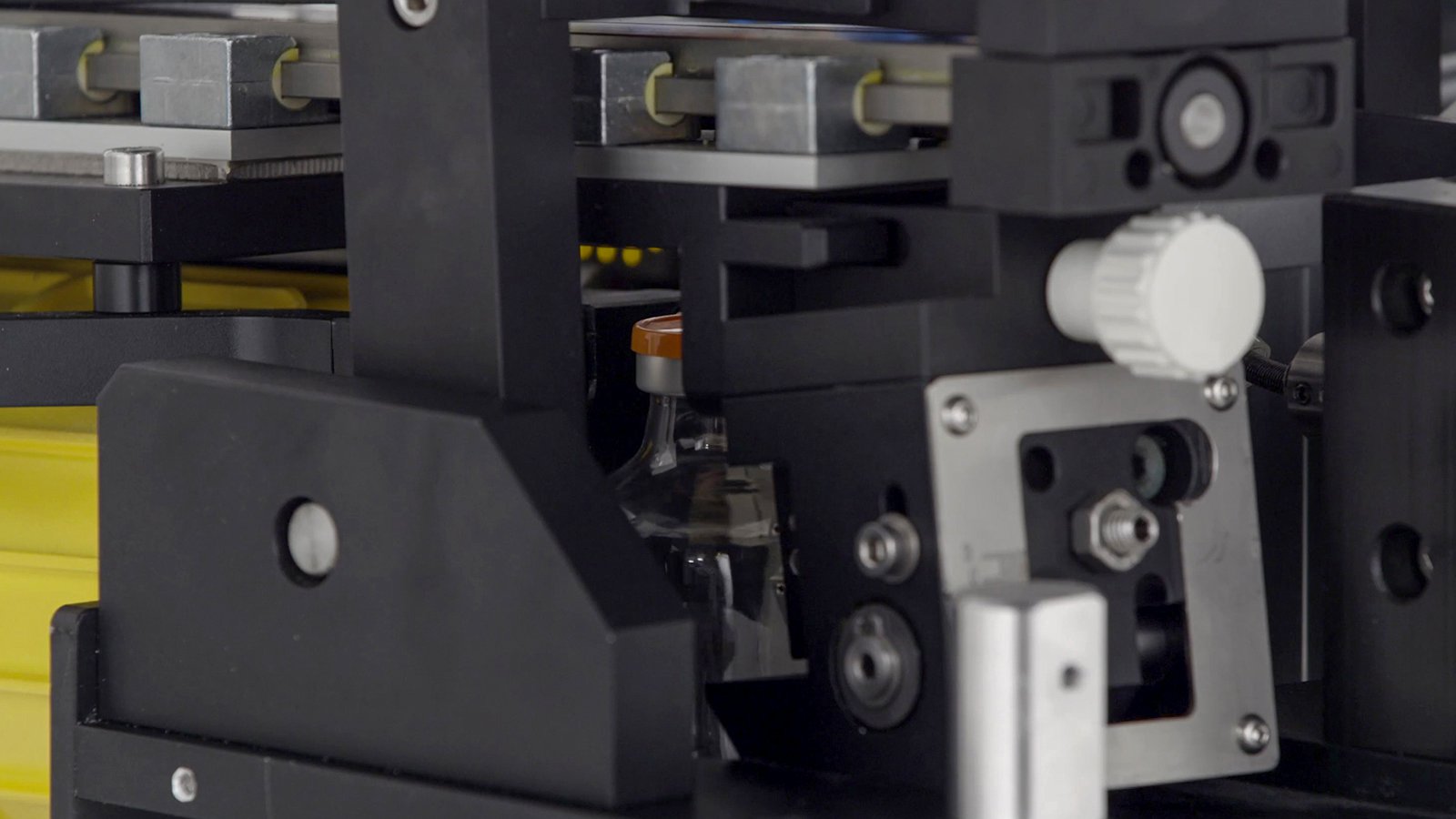

      • Diode laser beam transmitted through headspace region of the container and reflected back towards the receiver.
      • Lasercube sensors measure the laser beam absorption related to target gas concentration.
      icon-22

      Quality Assurance

      icon-12
      • Software designed to comply with FDA 21 CFR Part 11 and EU Annex 11
      • Testing method in conformity with provisions of USP - United States Pharmacopeia - General Chapter <1207>
      • Standard containers set supplied for easy calibration and verification
      • Easy to perform validations and qualifications thanks to advanced protocols and documentation
