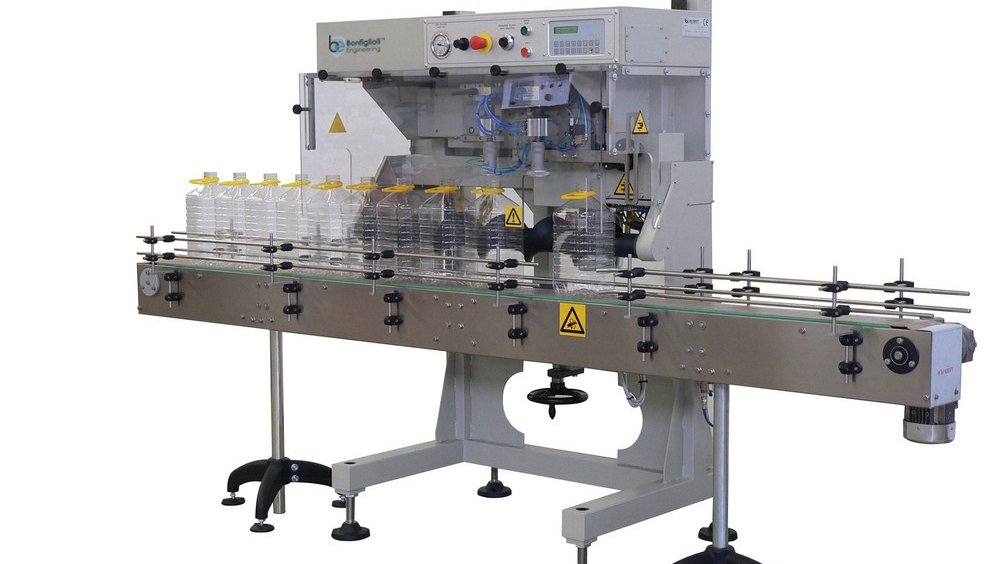

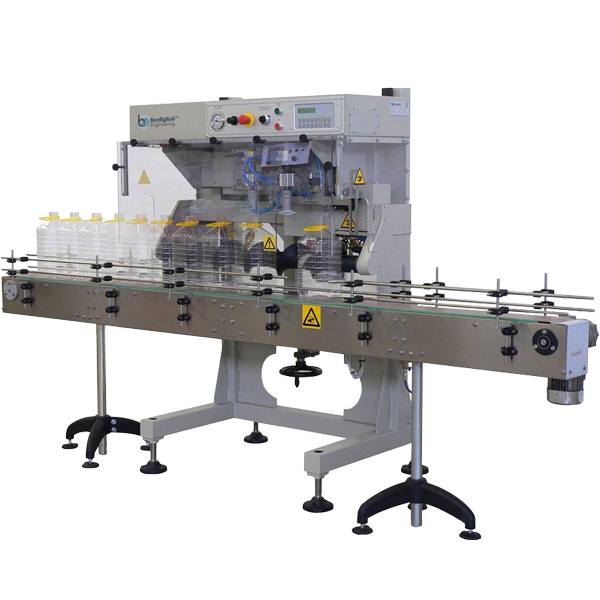

      HSL-200 Leak Tester

      Chemicals & Personal Care

      In-line, Non-Invasive, Non-destructive Integrity Inspection System for empty plastic containers (such as Jerry Cans, Bottles)

      icon-01 PLAY VIDEO

      Bottles

      Jerry Cans

      Tech specifications
      icon-23

      Highlights

      • Zero alteration of container features
      • High machine adaptability & stability
      • Easy management
      • Low energy consumption
      • Low & Ease of maintenance: free access to all moving parts
      Contact Us
      HSL-200 | Leak Tester Contact Us
      icon-19

      Technical Features

      icon-12
      • Container Application: Jerry Cans, Bottles
      • Products: Empty
      • Container Dimensions: From Ø50 x 100 mm (h) to Ø 250 x 400 mm (h)
      • Speed: Up to 120 Cpm
      • Technology: CCIT
      • Inspection Features: Non-Invasive, Non-Destructive CCIT based on Pressure Decay Method
      • Inspection Capabilities: Microleaks detection
      icon-20

      Additional Benefits

      icon-12
      • Low investment cost
      • Reliability guaranteed above 99%
      • Quick format change
      • HMI real time display
      • Noise levels well within allowed limits
      icon-21

      Technology

      icon-12
      • Container Closure Integrity Testing is a non-destructive measurement technology based on Pressure Decay Method.
        Measurement system comprises applying a pressure differential into an airtight testing group enclosing the container.
        The test objective is to detect container leakages by measuring the reached pressure level as well as the pressure change over test time.
      icon-22

      Quality Assurance

      icon-12
      • Equipment test method refers to:
        Approved industry standard “ASTM F2338-09”: “Standard Test Method for Non-Destructive Detection of Leaks in Packages”
